Right Seat Back Heater (Component Side) (Right Seat Back Pigtail) 2 Way

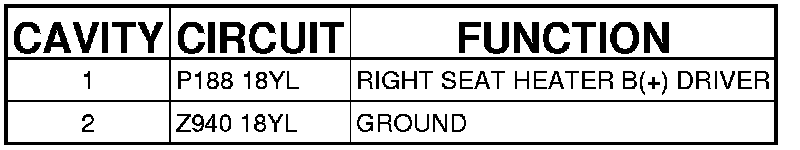

Connector (COMPONENT SIDE) - (RIGHT SEAT BACK PIGTAIL) 2 WAY

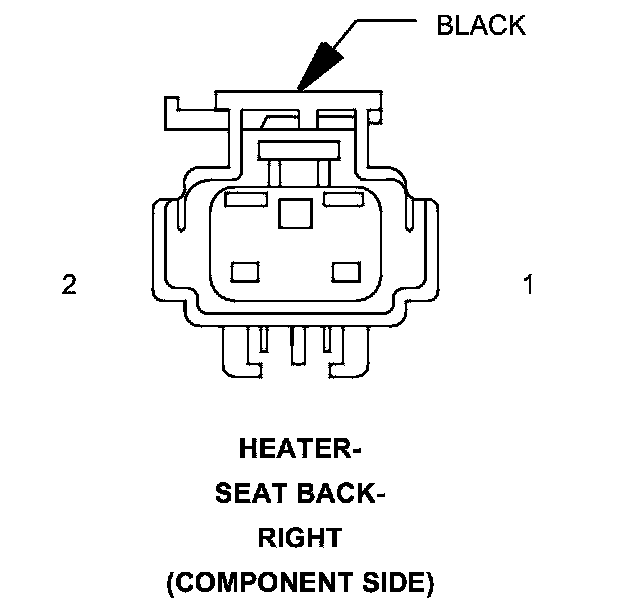

HEATER-SEAT BACK-RIGHT (COMPONENT SIDE) - (RIGHT SEAT BACK PIGTAIL) 2 WAY
