Inside Rearview Mirror C1 (Headliner) 7 Way

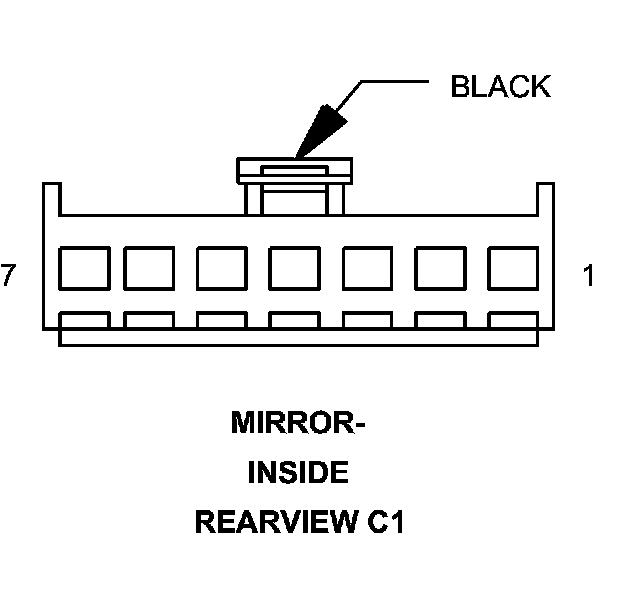

Connector C1 - (HEADLINER) 7 WAY

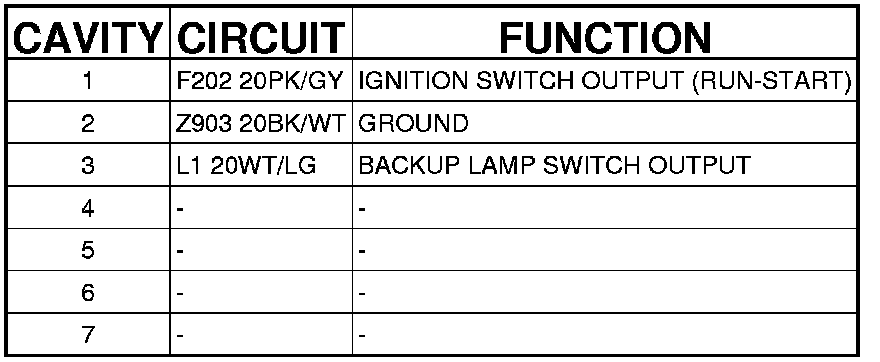

MIRROR-INSIDE REARVIEW - (HEADLINER) 7 WAY
