Driver Door Latch (LHD Except Base) (Left Front Door) 4 Way

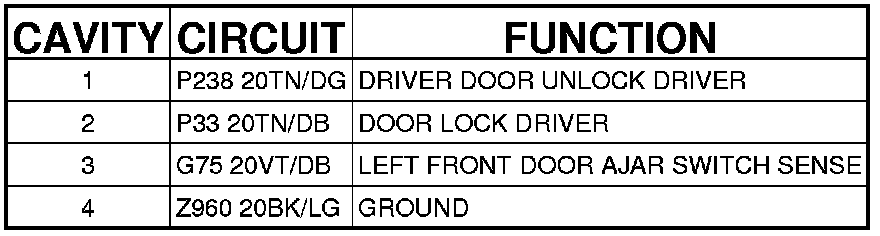

Connector (LHD EXCEPT BASE) - (LEFT FRONT DOOR) 4 WAY

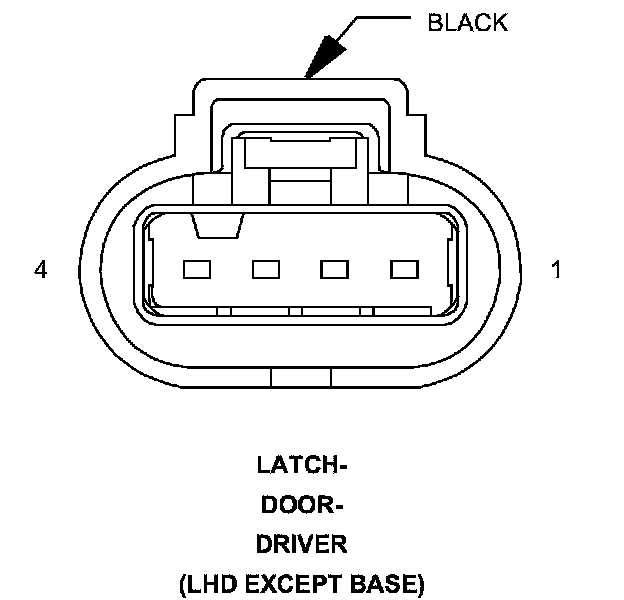

LATCH-DOOR-DRIVER (LHD EXCEPT BASE) - (LEFT FRONT DOOR) 4 WAY
