Driver Door Latch (LHD Base) (Left Front Door) 4 Way

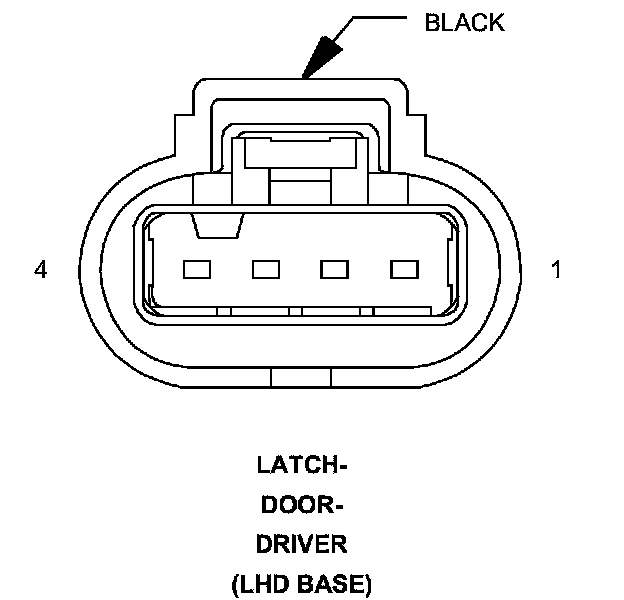

Connector (LHD BASE) - (LEFT FRONT DOOR) 4 WAY

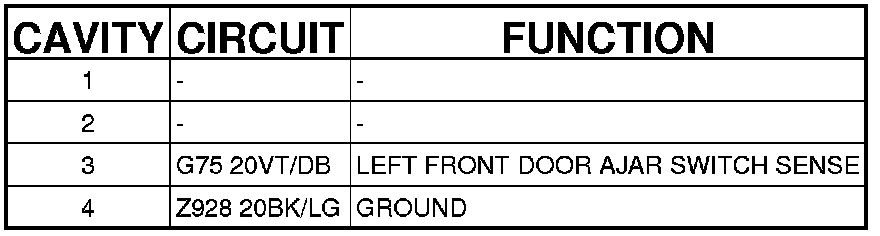

LATCH-DOOR-DRIVER (LHD BASE) - (LEFT FRONT DOOR) 4 WAY
