Instrument Panel Glove Box - Installation
>>
Chill Zone(R)
Chill Zone(R)
CHILL ZONE(R)
1.

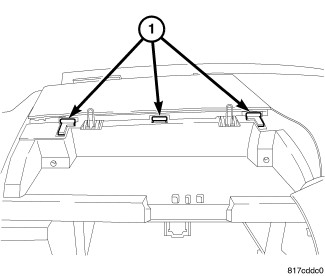

Align cooler door with cooler door opening tabs (1).
2.

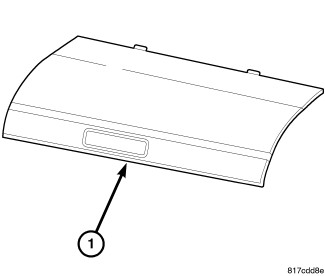

Snap cooler door (1) on to door opening tabs.
3.
Shut cooler door.
