Instrument Panel Pad - Installation

INSTALLATION

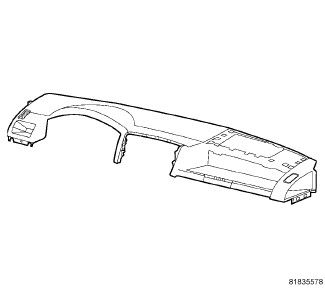

1. Position the instrument panel upper trim panel over instrument panel reinforcement and snap into place.
2. Install five screw attachments along forward edge under top cover, screw attachments under each end cap, two screw attachments under center bezel, two clip attachments in the upper cooler bin, one screw attachment under the steering column cover, one clip attachment on the passenger side near outboard outlet, and two clips in the cluster area.
3. Install the passenger airbag (if equipped) Passenger Air Bag - Installation.
4. Install center bezel Instrument Panel Bezel - Removal.
5. Install automatic or manual console shifter bezel Shifter Bezel - Installation or Shifter Bezel - Installation.
6. Install steering column opening cover Steering Column Opening Cover - Installation.
7. Install right and left end caps Instrument Panel End Cap - Installation.
8. Install instrument panel top cover Instrument Panel Cover - Installation.

WARNING: Do not connect the battery negative cable Testing and Inspection . Serious or fatal injury may result if the system test is not performed first.
