Instrument Panel

INSTRUMENT PANEL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE: Left hand drive shown. Right hand drive similar.

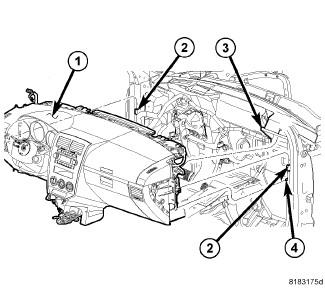

1. With the help of an assistant, load instrument panel into vehicle inserting stud (2) into dash and ensuring instrument panel hangs on reinforcement (2).
2. Install condensation drain tube into floor. Condensation Drain Tube - Removal

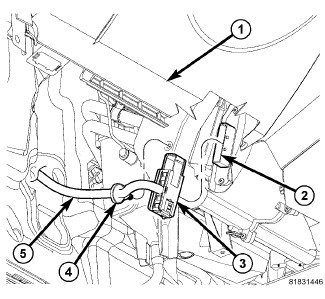

3. Connect HVAC wire harness (2).
4. Install 11 instrument panel to cowl panel fasteners. Tighten to 21 Nm (15 ft. lbs.).

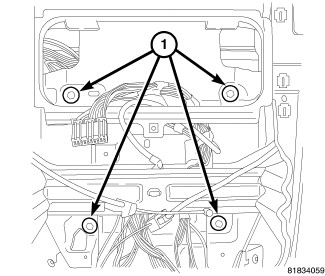

5. Install four fasteners (1) behind center bezel and one behind glove box.
6. Install left and right floor ducts. Condensation Drain Tube - Removal





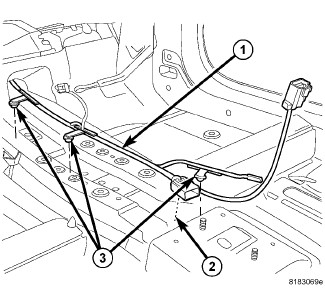

7. Connect instrument panel center console wiring harness.
8. Install left and right door scuff plate. Scuff Plate - Installation
9. Install lower B - Pillar trim panels. B-Pillar Trim Panel-Installation
10. Install B - Pillar trim panels. B-Pillar Trim Panel-Installation
11. Install Center console. Center Console - Installation
12. Install left and right seats.Seat - Installation

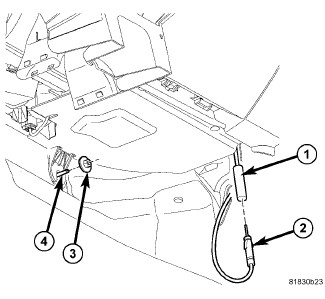

13. Connect radio harness (1) to antenna (2).
14. Install right cowl panel. Cowl Trim Panel - Installation
15. Install glove box.

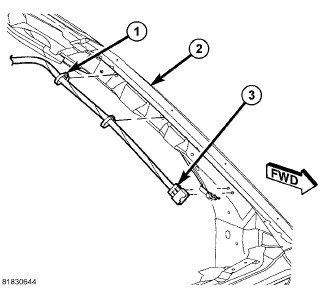

16. Connect A-Pillar (2) wiring harness (3).

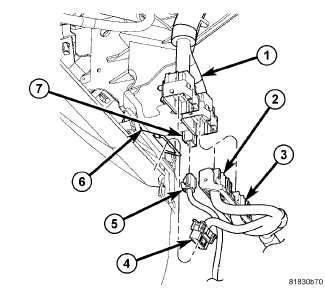

17. Connect instrument panel wiring harness (1) to (2) and (3), (7), and (5).
18. Install left cowl panel.Cowl Trim Panel - Installation
19. Install Top Panel. Instrument Panel Cover - Installation
20. Install left and right A - Pillar trim. A-Pillar Trim Panel-Installation
21. Install shifter assembly.
22. Install center bezel.Instrument Panel Bezel - Removal
23. Install center console shifter housing.Center Console - Installation
24. Install manual or automatic shifter bezel.Shifter Bezel - Installation
25. Connect steering column wire harness.
26. Connect steering column.Steering Column - Installation
27. Install steering cover shrouds.Steering Column Opening Cover - Installation
28. If equipped, install left and right airbag covers.
29. Install left and right end caps.Instrument Panel End Cap - Installation
30. Connect the negative battery cable.
