Base Panel






BASE PANEL

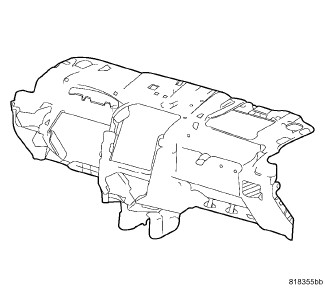

1. Place the IP base panel over the instrument panel structure and install the 25 retaining screws. Tighten the screws securely.
2. Install the knee blocker.
3. Install the glove box door Instrument Panel Glove Box - Installation.
4. Install the radio Radio - Installation.
5. Install the instrument cluster Instrument Cluster - Installation.
6. Install the upper panel Instrument Panel Pad - Installation.
7. Install steering column opening cover Steering Column Opening Cover - Installation.
8. Install the center bezel Instrument Panel Bezel - Installation.
9. Install shifter housing and bezel Shifter Bezel - Installation.
10. Install right and left end caps Instrument Panel End Cap - Installation.
11. Install the instrument panel top cover Instrument Panel Cover - Installation.
