P012D

P012D-TURBO INLET AIR PRESSURE SENSOR CIRCUIT HIGH





For a complete wiring diagram Refer to the Wiring Information

- When Monitored:
With the ignition on and battery voltage greater than 10 volts.

- Set Condition:
The PCM detects that the sensor input voltage is above the maximum acceptable value.





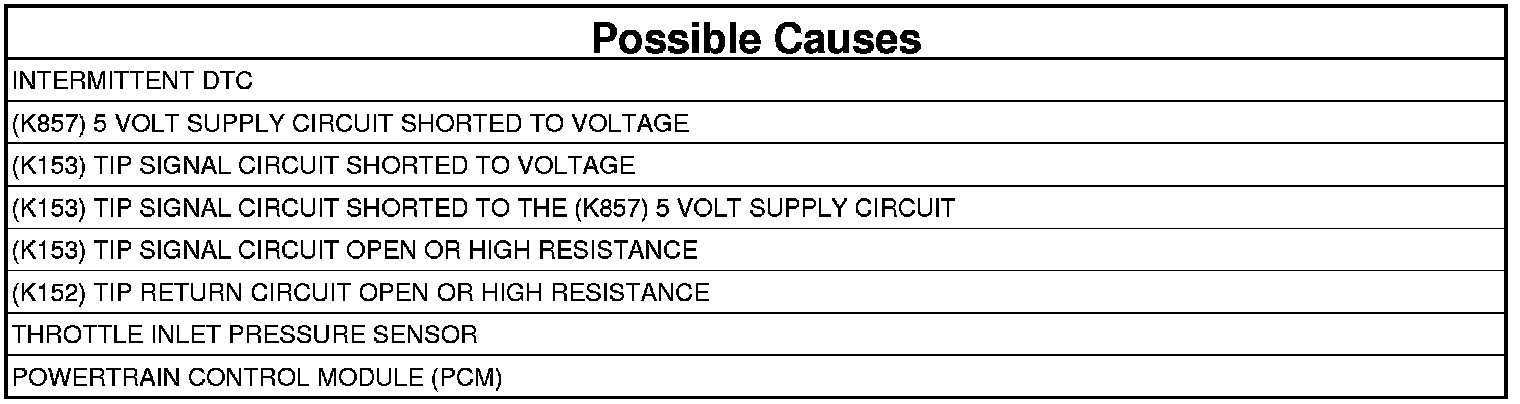

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.Pre-Diagnostic Troubleshooting Procedure

1. DTC IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this test.

2. With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.Checking for an Intermittent DTC

2. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the Throttle Inlet Pressure Sensor connector.
3. Disconnect the Powertrain Control Module (PCM) connector.
4. Turn the ignition on.
5. Measure the voltage of the (K857) 5 Volt Supply circuit in the Throttle Inlet Pressure Sensor harness connector.

Is there any voltage present?

Yes

- Repair the (K857) 5 Volt Supply circuit for a short to voltage.
- Perform the PCM Verification Test.PCM Verification Test

No

- Go to 3

3. (K153) TIP SIGNAL CIRCUIT SHORTED TO VOLTAGE




1. Measure the voltage of the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.

Is there any voltage present?

Yes

- Repair the (K153) TIP Signal circuit for a short to voltage.
- Perform the PCM Verification Test.PCM Verification Test

No

- Go to 4

4. (K153) TIP SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT




1. Turn the ignition off.
2. Measure the resistance between the (K153) TIP Signal circuit and the (K857) 5 Volt Supply in the Throttle Inlet Pressure Sensor harness connector.

Is the resistance below 100 ohms?

Yes

- Repair the (K153) TIP Signal circuit for a short to the (K857) 5 Volt Supply circuit.
- Perform the PCM Verification Test.PCM Verification Test

No

- Go to 5

5. (K153) TIP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE





CAUTION: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.

1. Measure the resistance of the (K153) TIP Signal circuit between the Throttle Inlet Pressure Sensor harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 6

No

- Repair the (K153) TIP Signal for an open circuit or high resistance.
- Perform the PCM Verification Test.PCM Verification Test

6. (K152) TIP RETURN CIRCUIT OPEN OR HIGH RESISTANCE





CAUTION: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.

1. Measure the resistance of the (K152) TIP Return circuit between the Throttle Inlet Pressure Sensor harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 7

No

- Repair the (K152) TIP Return circuit for an open circuit or high resistance.
- Perform the PCM Verification Test.PCM Verification Test

7. THROTTLE INLET PRESSURE SENSOR VOLTAGE




1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Connect a jumper wire between the (K152) TIP Return circuit and the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.
4. Turn the ignition on.
5. With the scan tool, read the Throttle Inlet Pressure Sensor signal voltage.

NOTE: The voltage should be approximately 0.0 volts (plus or minus.1 volt) with the jumper wire in place.

Does the scan tool display the voltage as described above?

Yes

- Go to 8

No

- Go to 9

8. THROTTLE INLET PRESSURE SENSOR
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Inlet Pressure Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Search for any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test.PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test.PCM Verification Test

9. POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Inlet Pressure Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Search for any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test.PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test.PCM Verification Test
