B1438

B1438-VOICE RECOGNITION SWITCH STUCK

For a complete wiring diagram, refer to the Wiring Information. Electrical Diagrams

- When Monitored:
With the ignition on.

- Set Condition:
The Hands Free Module (HFM) detects the Voice Recognition/Phone Switch is pressed for greater than 20 seconds.





CHECK FOR ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

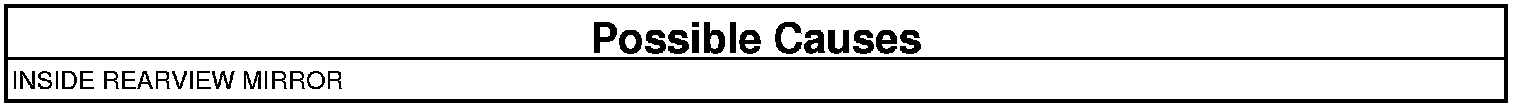

- Replace the Inside Rearview Mirror.
- Perform the BODY VERIFICATION TEST. Body Verification Test

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
- Perform the BODY VERIFICATION TEST. Body Verification Test
