Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Right Rear Window Motor (JS41) (Right Rear Door) 2 Way

Right Rear Window Motor (JS41) (Right Rear Door) 2 Way

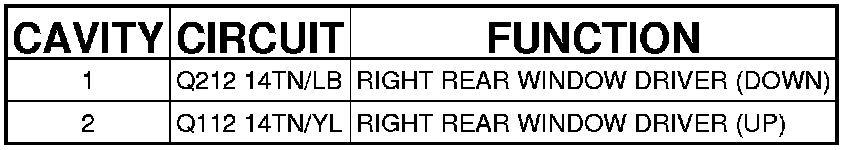

Connector (JS41) - (RIGHT REAR DOOR) 2 WAY

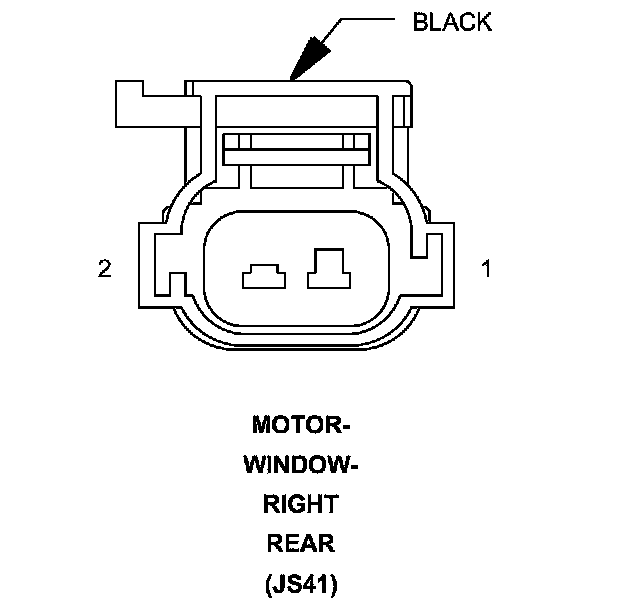

MOTOR-WINDOW-RIGHT REAR (JS41) - (RIGHT REAR DOOR) 2 WAY
