Driver Window Motor (Express) (Driver Door) 6 Way
Driver Window Motor (Express) (Driver Door) 6 Way

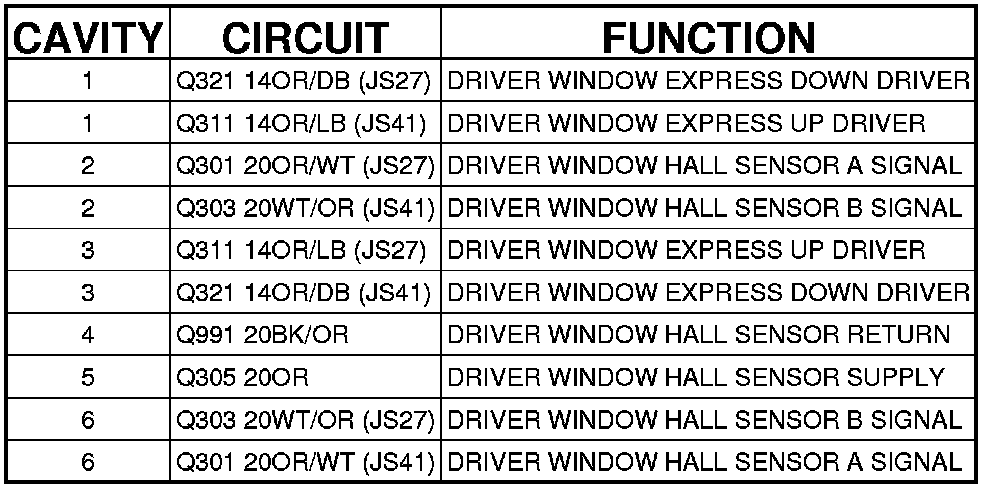

Connector (EXPRESS) - (DRIVER DOOR) 6 WAY

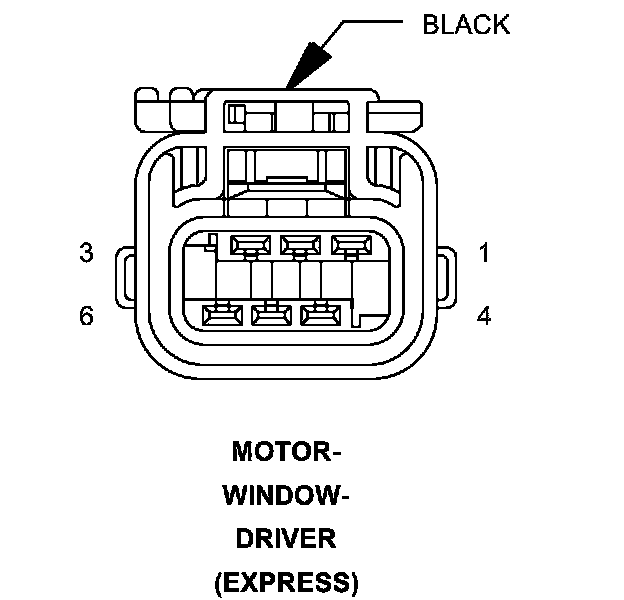

MOTOR-WINDOW-DRIVER (EXPRESS) - (DRIVER DOOR) 6 WAY
