Driver Window/Door Lock Switch C2 (JS41 Except Express) (Driver Door) 8 Way

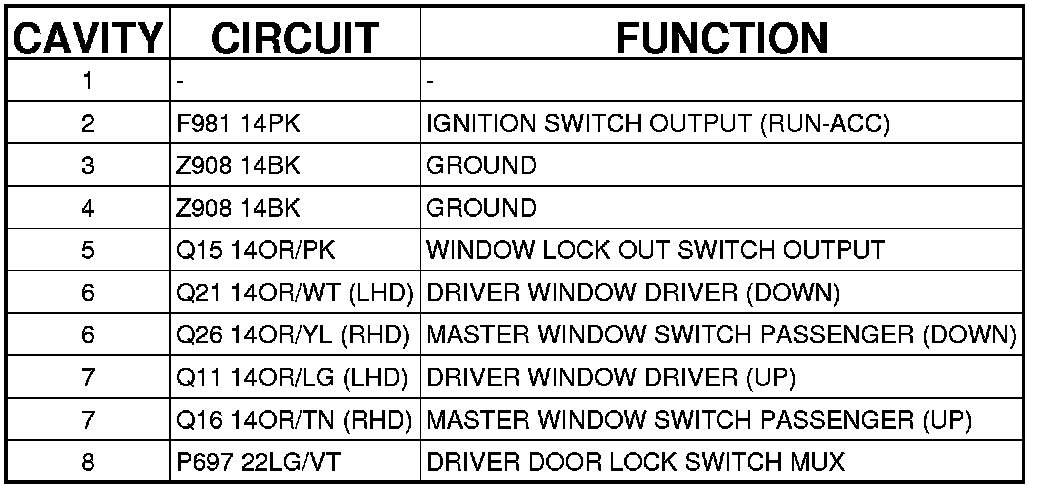

Connector C2 (JS41 EXCEPT EXPRESS) - (DRIVER DOOR) 8 WAY

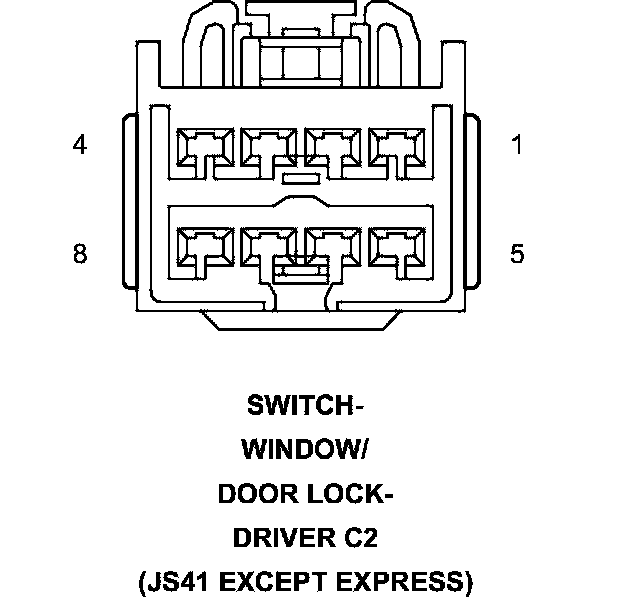

SWITCH-WINDOW/DOOR LOCK-DRIVER (JS41 EXCEPT EXPRESS) - (DRIVER DOOR) 8 WAY
