Shift Lever Assembly C2 (Autostick) (Body) 4 Way

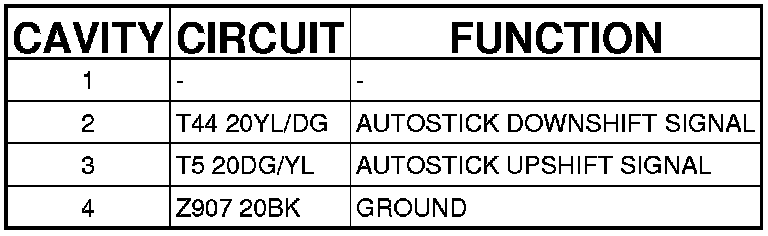

Connector C2 (AUTOSTICK) - (BODY) 4 WAY

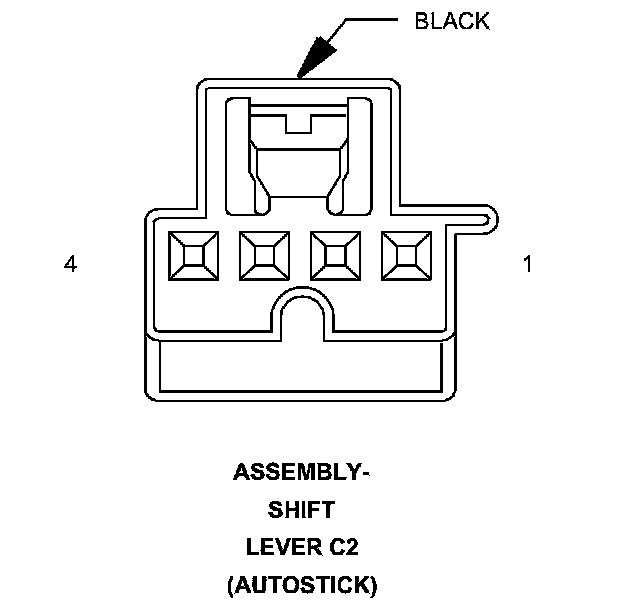

ASSEMBLY-SHIFT LEVER (AUTOSTICK) - (BODY) 4 WAY
