Shift Lever Assembly C1 (Body) 2 Way

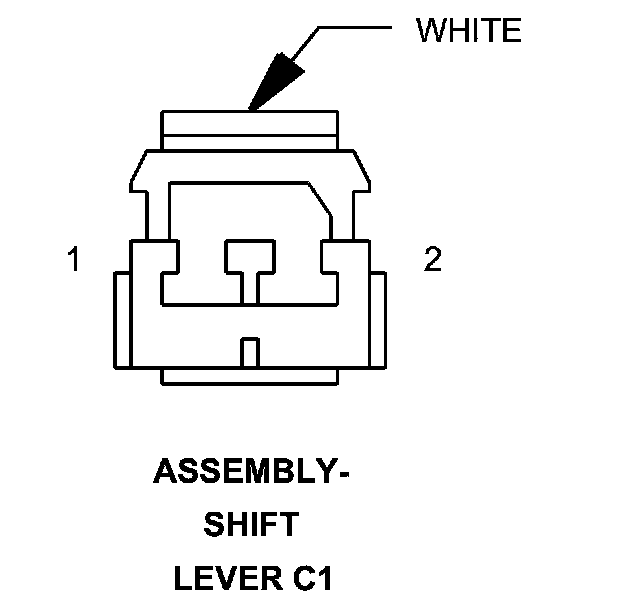

Connector C1 - (BODY) 2 WAY

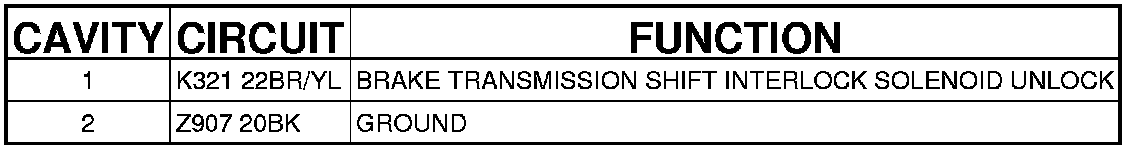

ASSEMBLY-SHIFT LEVER - (BODY) 2 WAY
