Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Steering and Suspension >> Alignment >> Service and Repair >> Curb Height Measurement

Curb Height Measurement

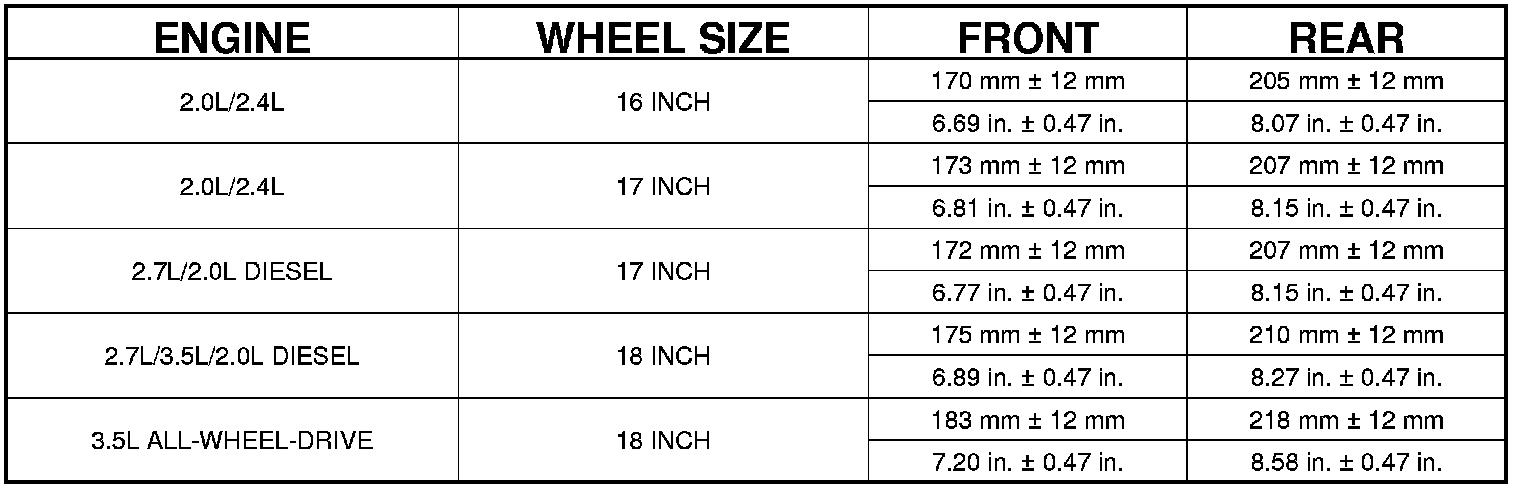

CURB HEIGHT SPECIFICATIONS - SEDAN (JS41)

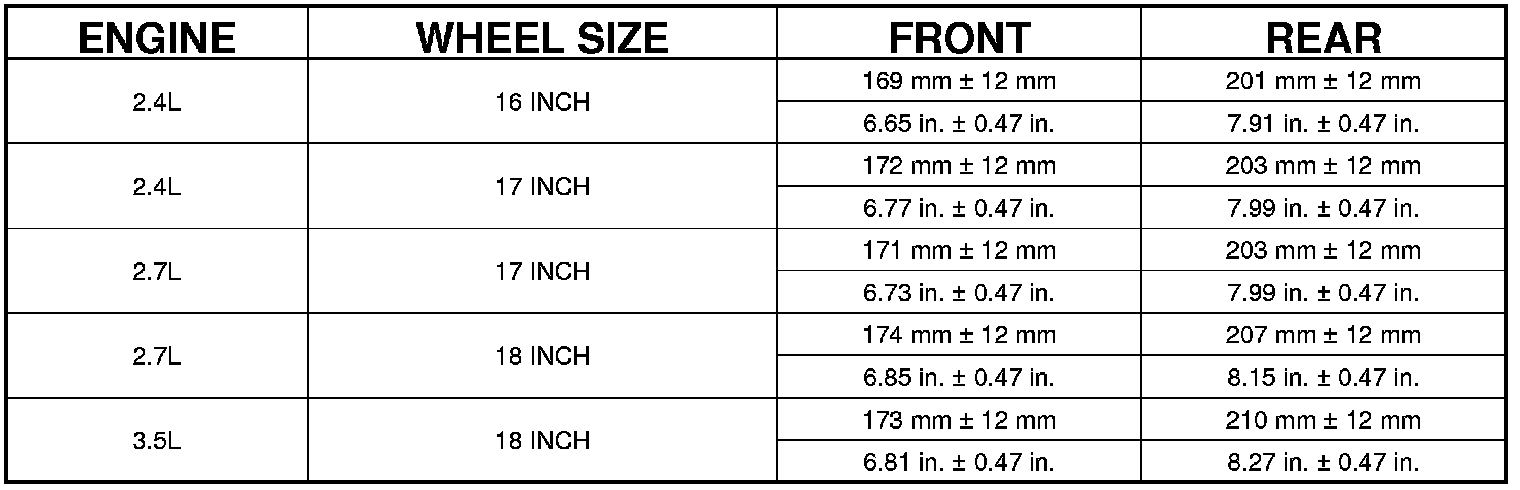

CURB HEIGHT SPECIFICATIONS - CONVERTIBLE (JS27)
