Console Power Outlet (Center Console) 3 Way

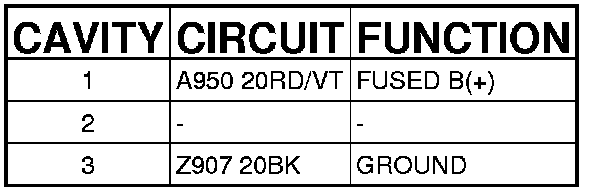

Connector - (CENTER CONSOLE) 3 WAY

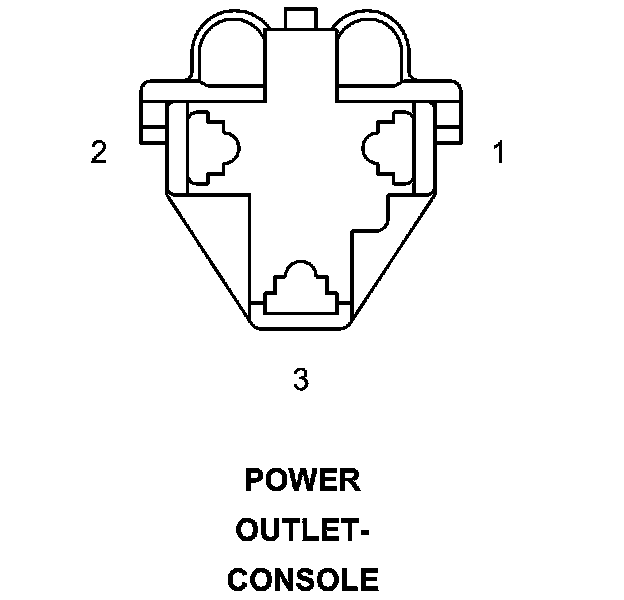

POWER OUTLET-CONSOLE - (CENTER CONSOLE) 3 WAY
