Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Wheel Alignment

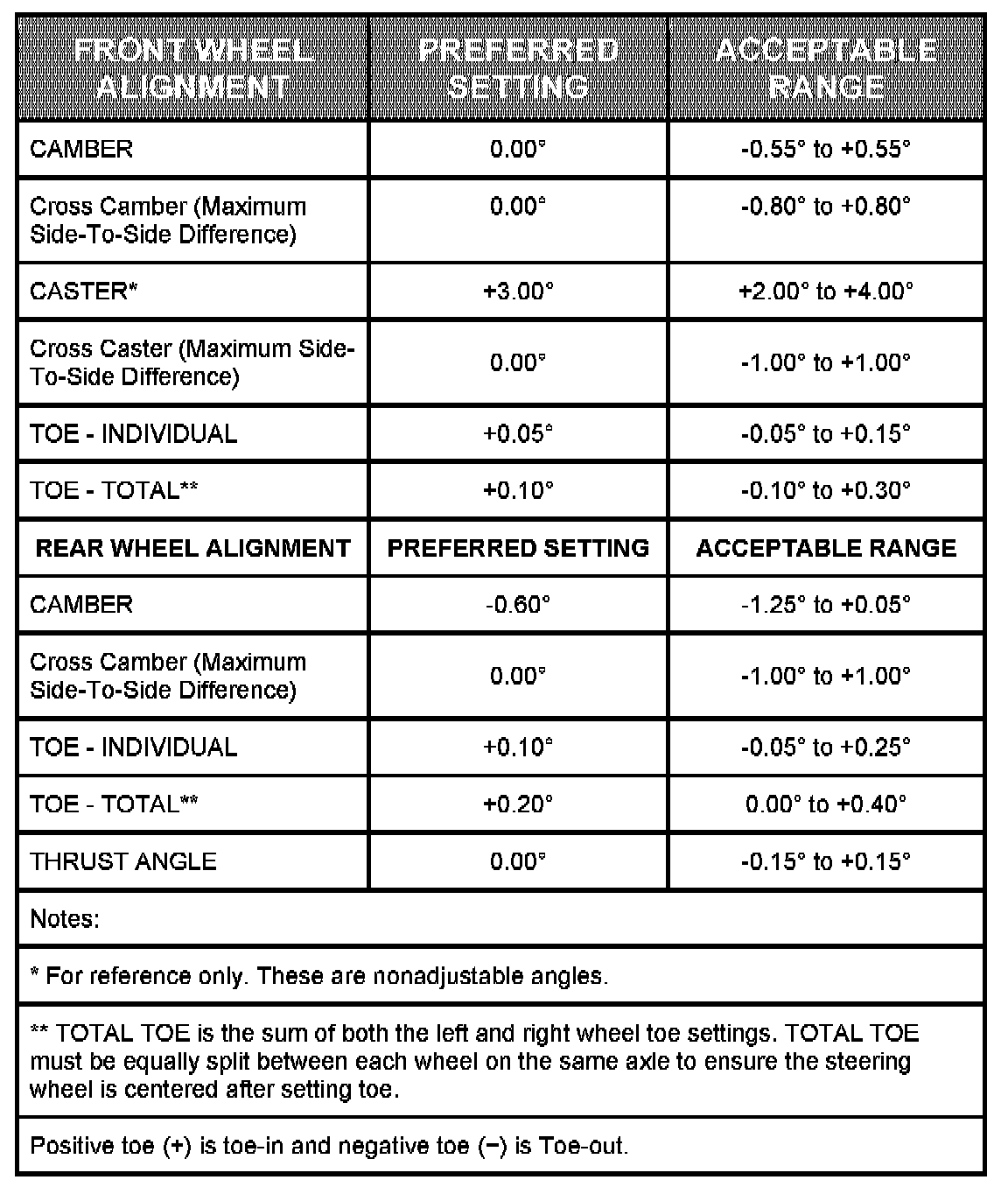

Wheel Alignment



WHEEL ALIGNMENT

All specifications are given in degrees.

All wheel alignments are to be set with the vehicle at curb height.
