Driver Window/Door Lock Switch C1 (JS41 Express) (Driver Door) 8 Way

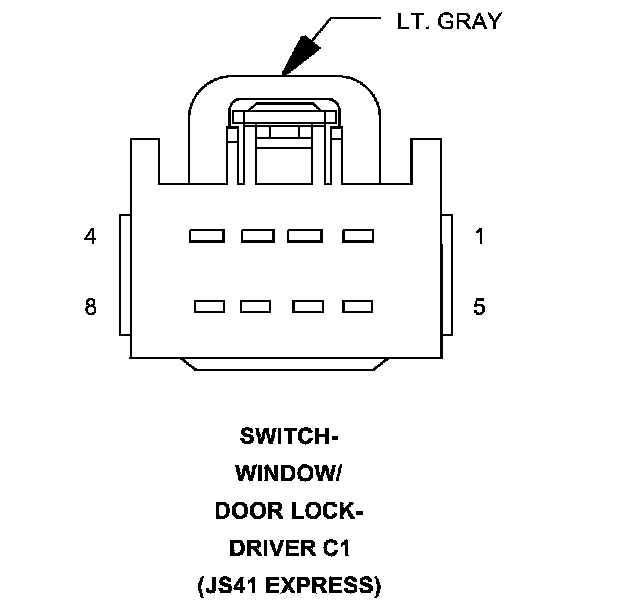

Connector C1 (JS41 EXPRESS) - (DRIVER DOOR) 8 WAY

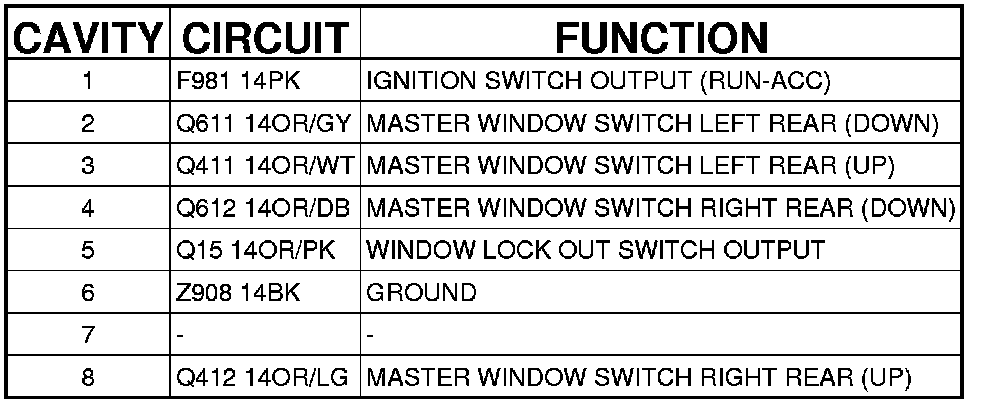

SWITCH-WINDOW/DOOR LOCK-DRIVER (JS41 EXPRESS) - (DRIVER DOOR) 8 WAY
