Left Side Impact Sensor 1 (JS41) (Body) 4 Way
Left Side Impact Sensor 1 (JS41) (Body) 4 Way

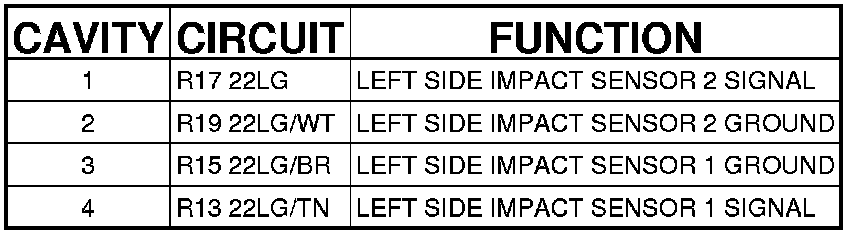

Connector (JS41) - (BODY) 4 WAY

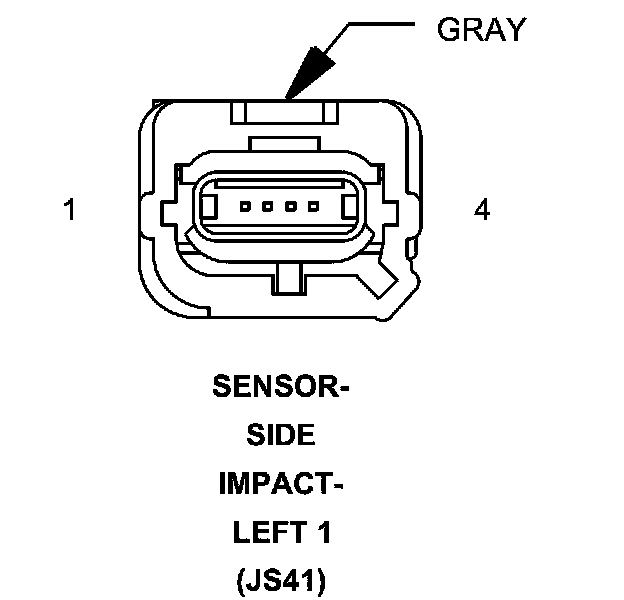

SENSOR-SIDE IMPACT-LEFT 1 (JS41) - (BODY) 4 WAY
