Right Multifunction Switch (Steering Wheel Jumper) 7 Way

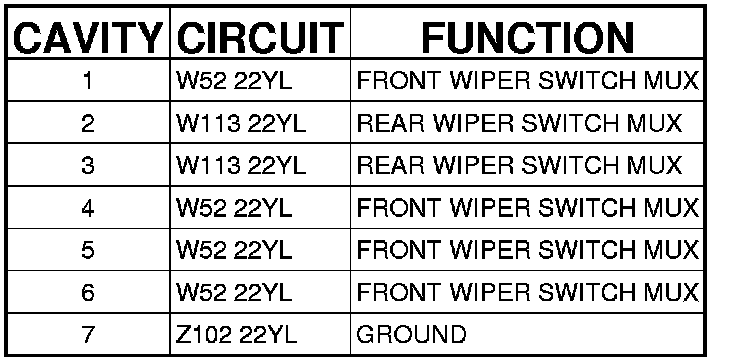

Connector - (STEERING WHEEL JUMPER) 7 WAY

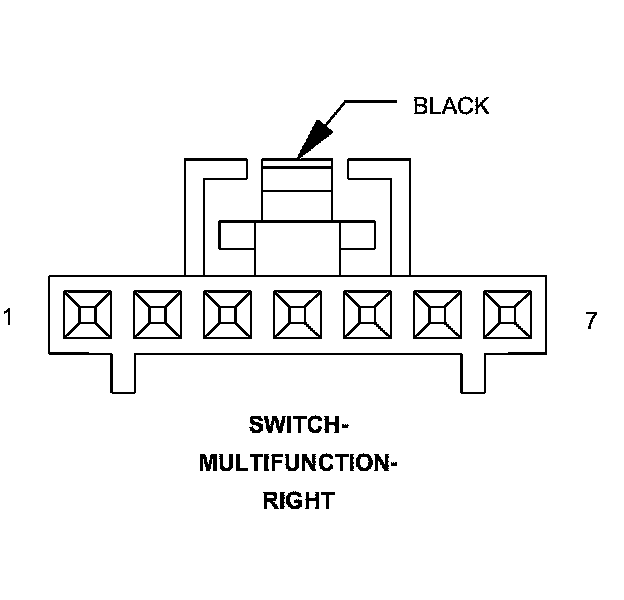

SWITCH-MULTIFUNCTION-RIGHT - (STEERING WHEEL JUMPER) 7 WAY
