Infrared Sensor (ATC) (Headliner) 4 Way

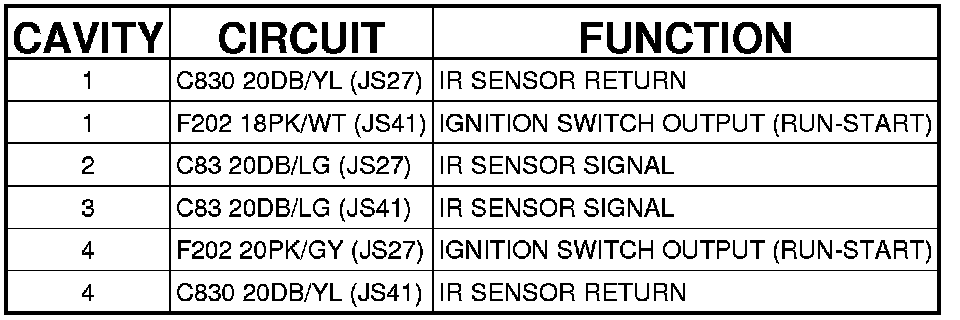

Connector (ATC) - (HEADLINER) 4 WAY

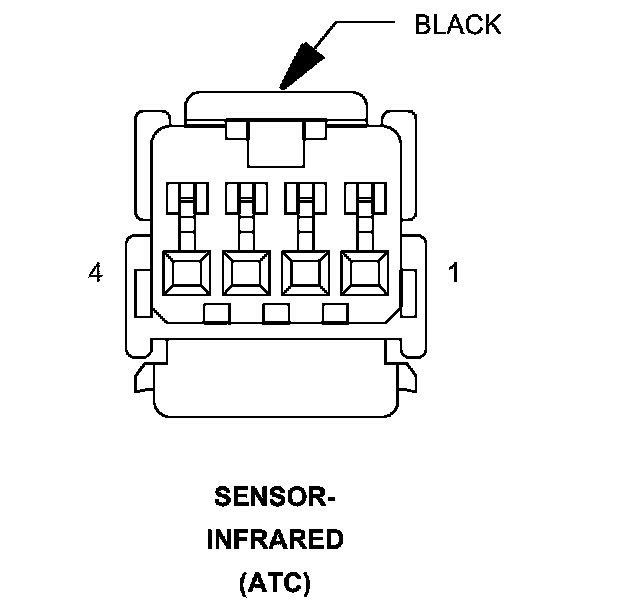

SENSOR-INFRARED (ATC) - (HEADLINER) 4 WAY
