Oil Temperature Sensor/Switch: Diagrams

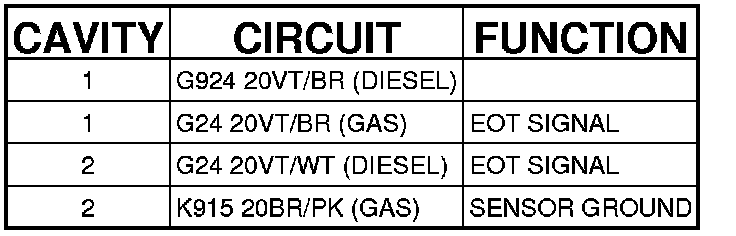

Connector (2.0L/2.4L) - (ENGINE) 2 WAY

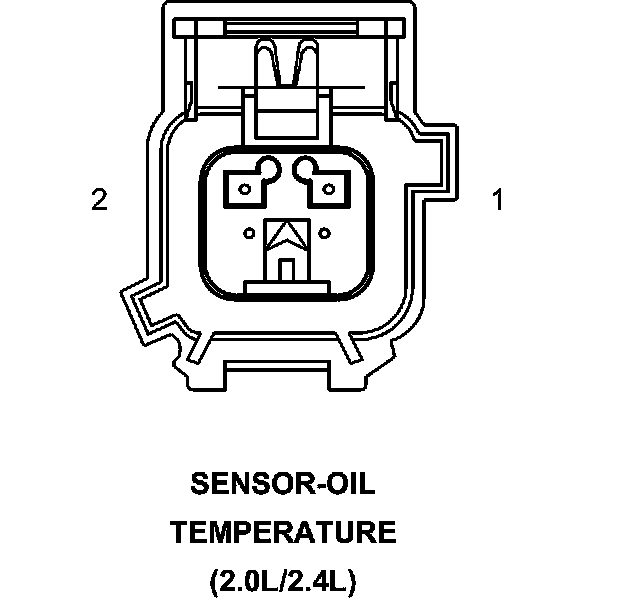

SENSOR-OIL TEMPERATURE (2.0L/2.4L) - (ENGINE) 2 WAY
