Sunroof / Moonroof Switch: Diagrams

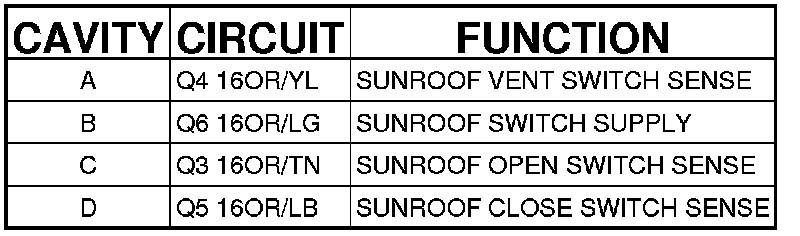

Connector - (HEADLINER) 4 WAY

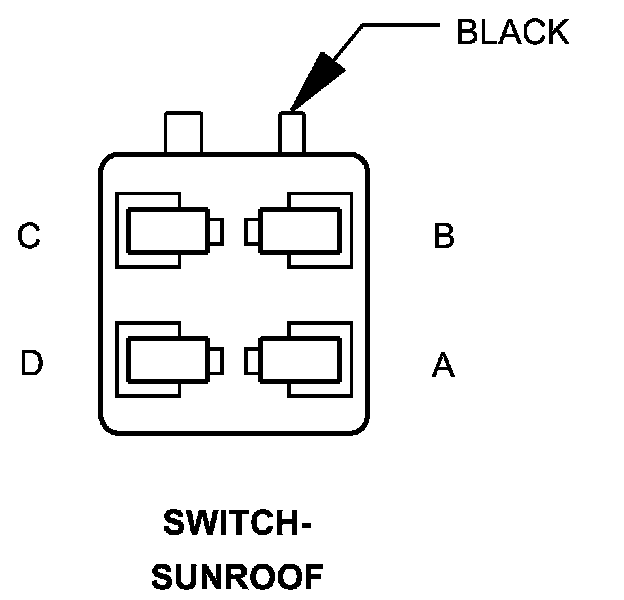

SWITCH-SUNROOF - (HEADLINER) 4 WAY
