Power Seat Switch: Diagrams

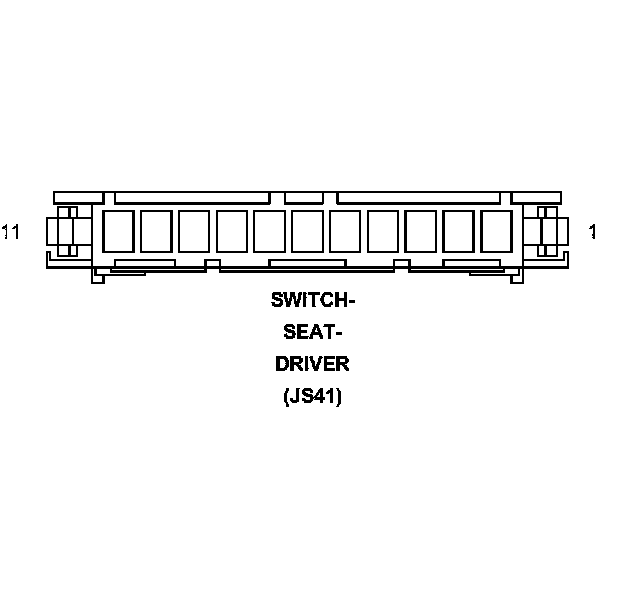

Connector (JS41) - (DRIVER SEAT) 11 WAY

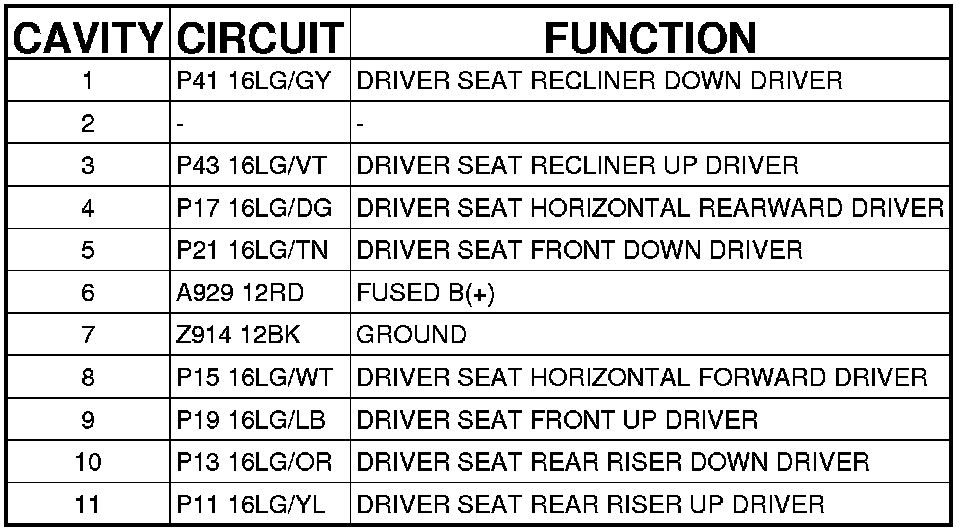

SWITCH-SEAT-DRIVER (JS41) - (DRIVER SEAT) 11 WAY
