Transmission Solenoid/Pressure Switch Assembly (40/41TE) (Transmission) 8 Way

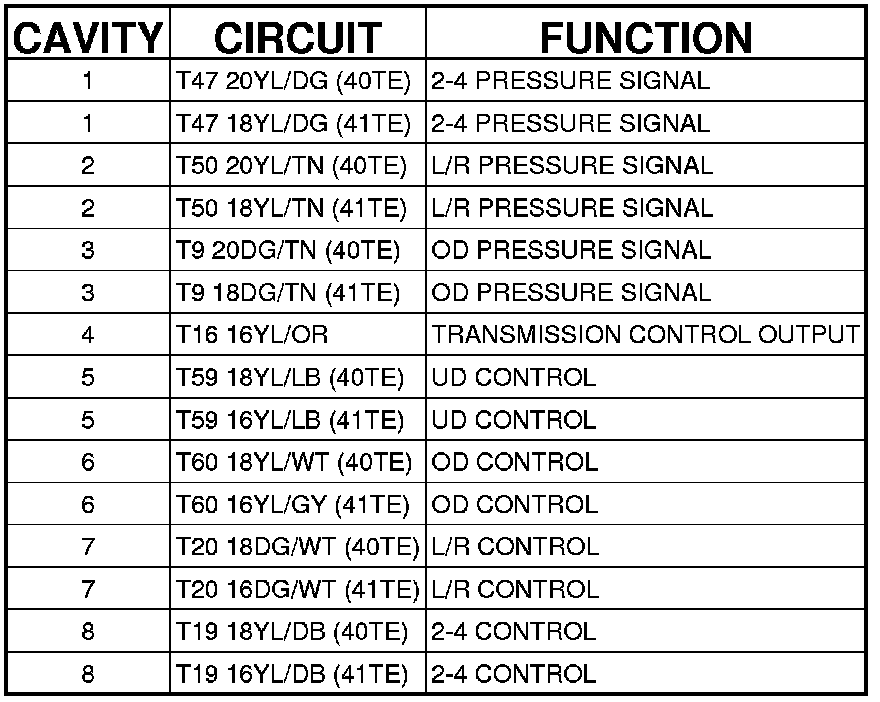

Connector (40/41TE) - (TRANSMISSION) 8 WAY

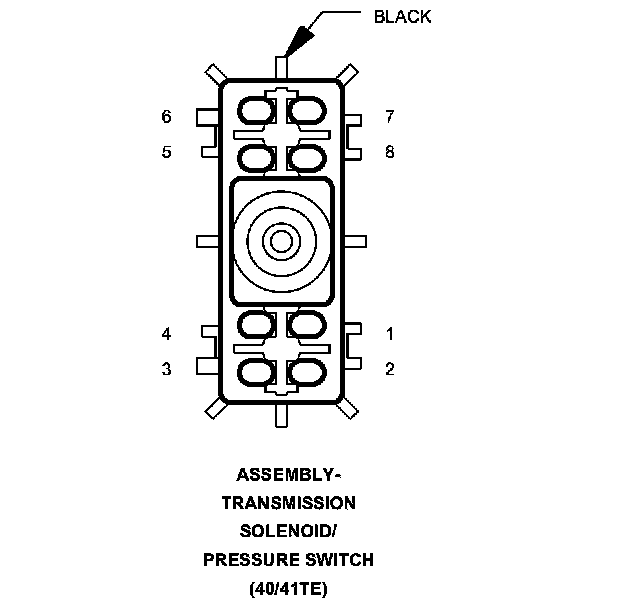

ASSEMBLY-TRANSMISSION SOLENOID/PRESSURE SWITCH (40/41TE) - (TRANSMISSION) 8 WAY
