Air Injection Pump Relay: Diagrams

Connector (2.4L PZEV) - (AIR PUMP ASSEMBLY) 4 WAY

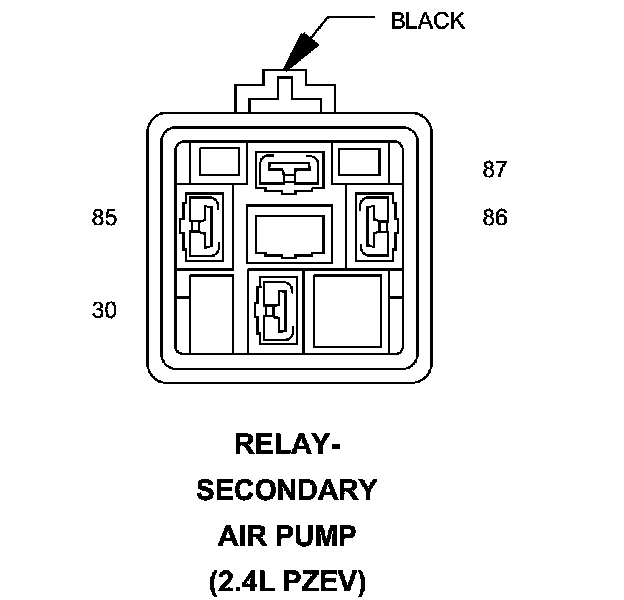

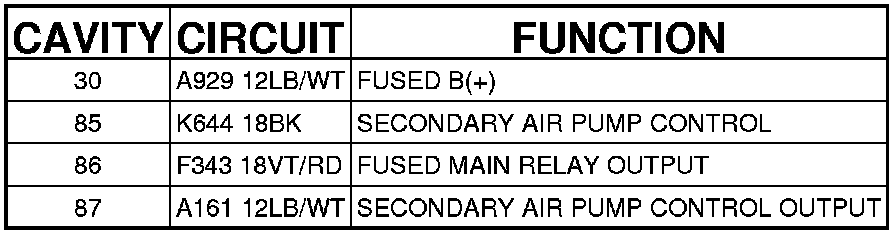

RELAY-SECONDARY AIR PUMP (2.4L PZEV) - (AIR PUMP ASSEMBLY) 4 WAY
