Condenser: Diagrams






Connector (GAS) - (ENGINE) 1 WAY

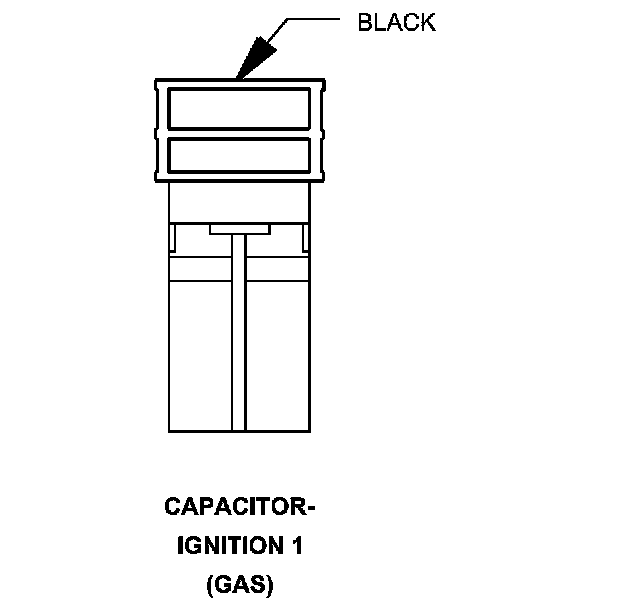

CAPACITOR-IGNITION 1 (GAS) - (ENGINE) 1 WAY
