Camshaft Position Solenoid 1/1 (Engine) 2 Way

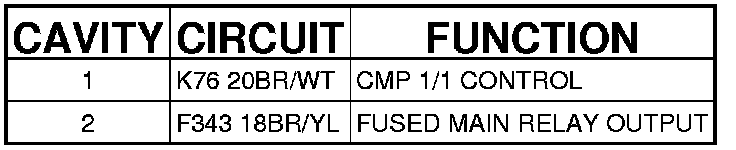

Connector (2.0L/2.4L) - (ENGINE) 2 WAY

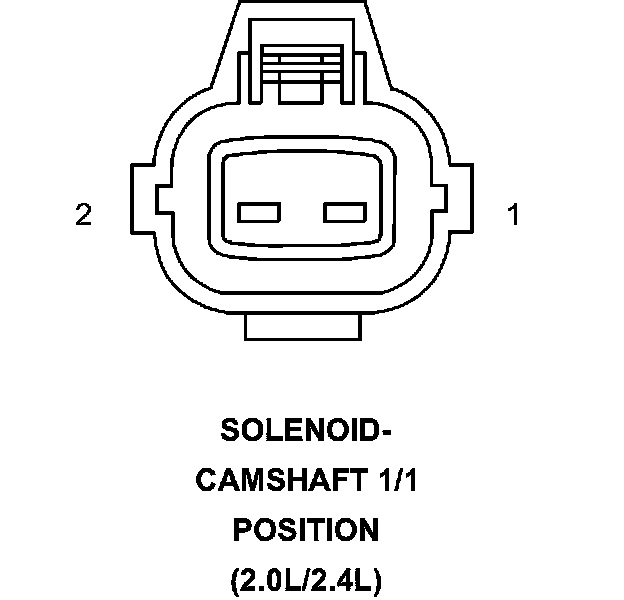

SOLENOID-CAMSHAFT 1/1 POSITION (2.0L/2.4L) - (ENGINE) 2 WAY
