Totally Integrated Power Module C5 (Headlamp And Dash) 14 Way

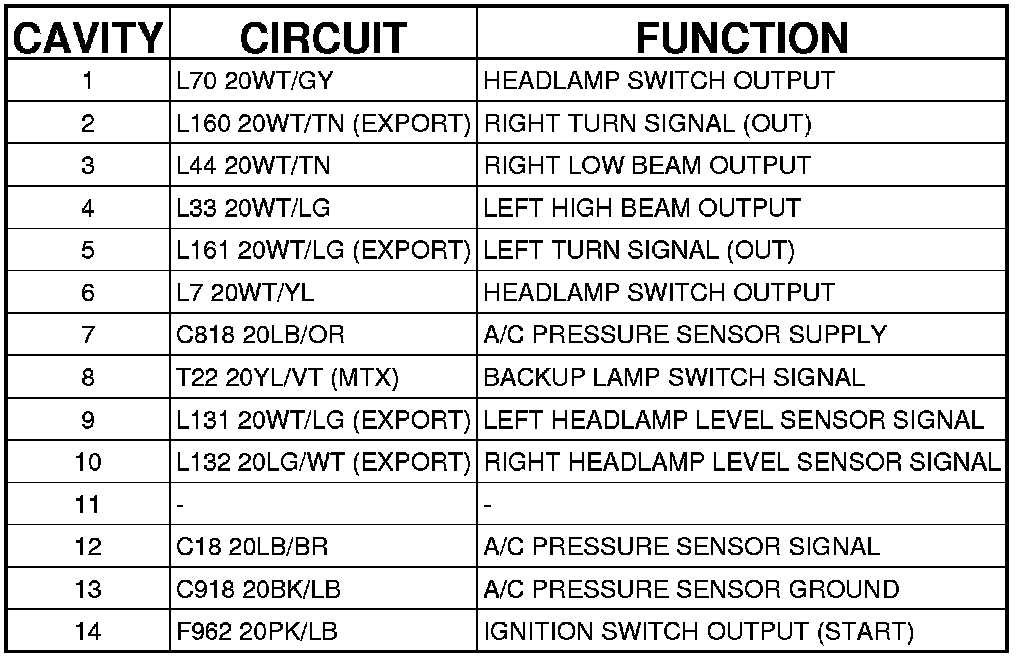

Connector C5 - (HEADLAMP AND DASH) 14 WAY

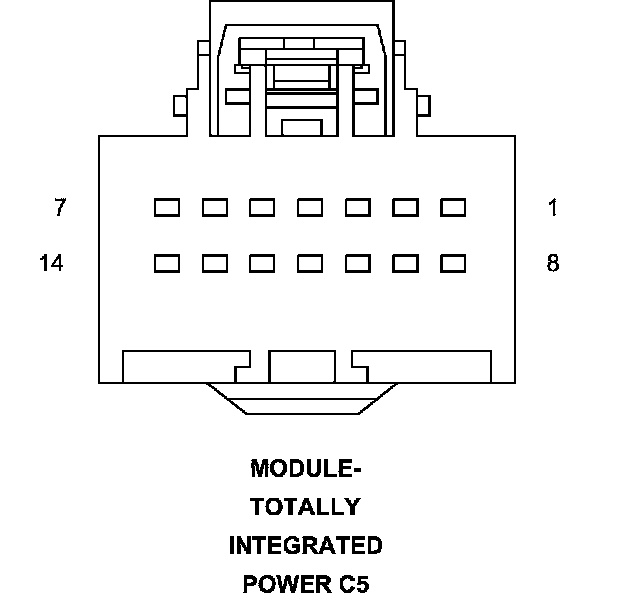

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 14 WAY
