Totally Integrated Power Module C4 (Headlamp And Dash) 10 Way

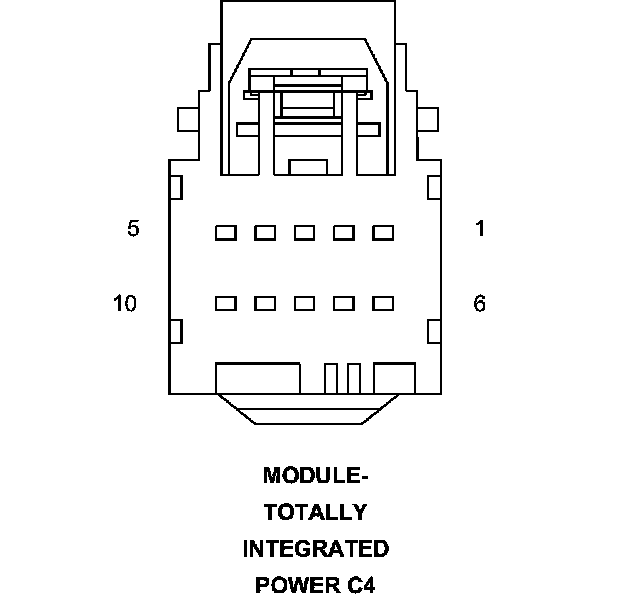

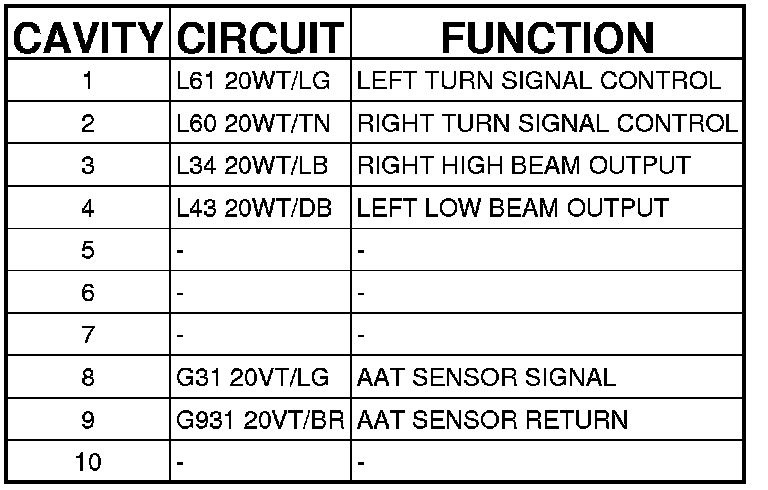

Connector C4 - (HEADLAMP AND DASH) 10 WAY




MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 10 WAY
