Totally Integrated Power Module C1 (Headlamp And Dash) 13 Way

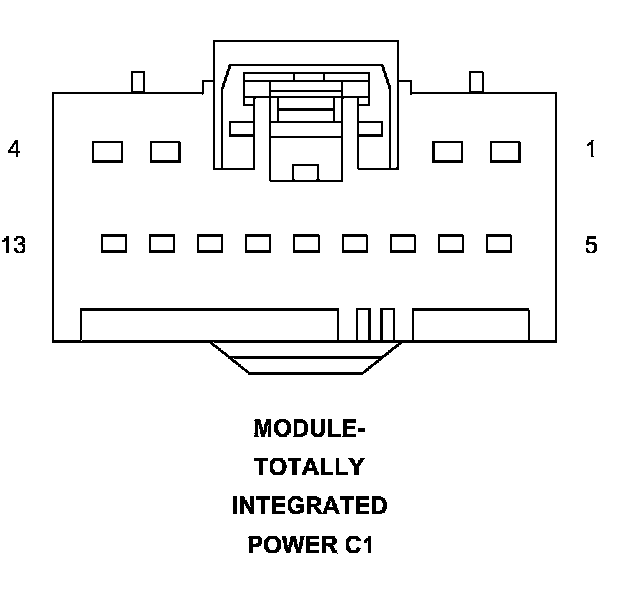

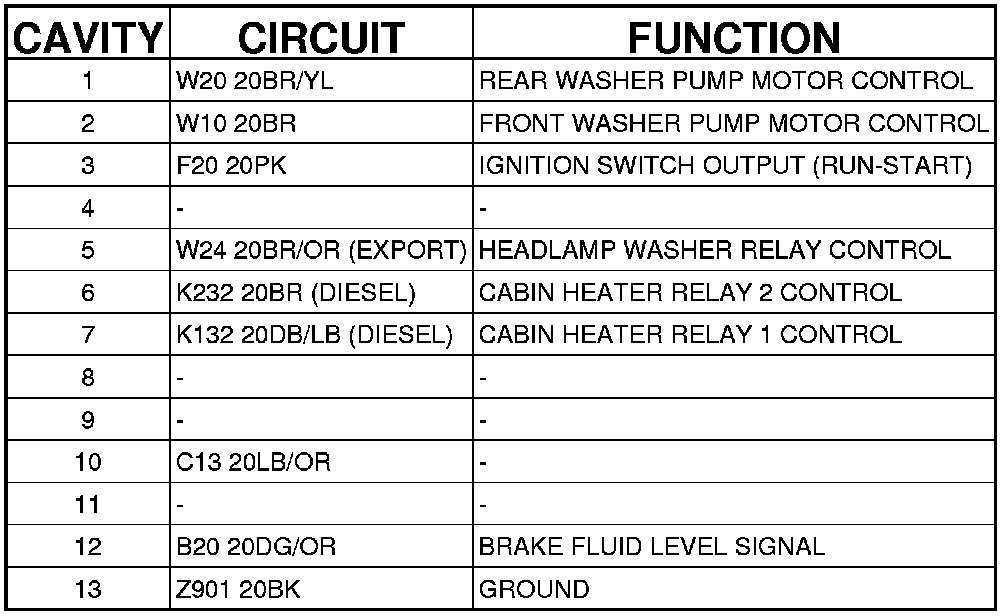

Connector C1 - (HEADLAMP AND DASH) 13 WAY




MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 13 WAY
