Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> System Diagram >> Left Front Fog Lamp (Front End Module) 2 Way

Left Front Fog Lamp (Front End Module) 2 Way

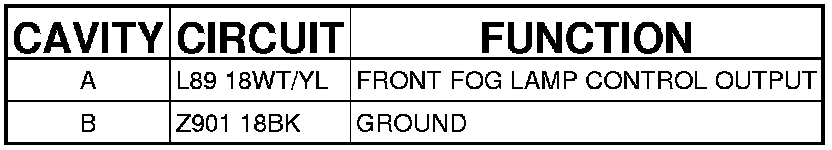

Connector - (FRONT END MODULE) 2 WAY

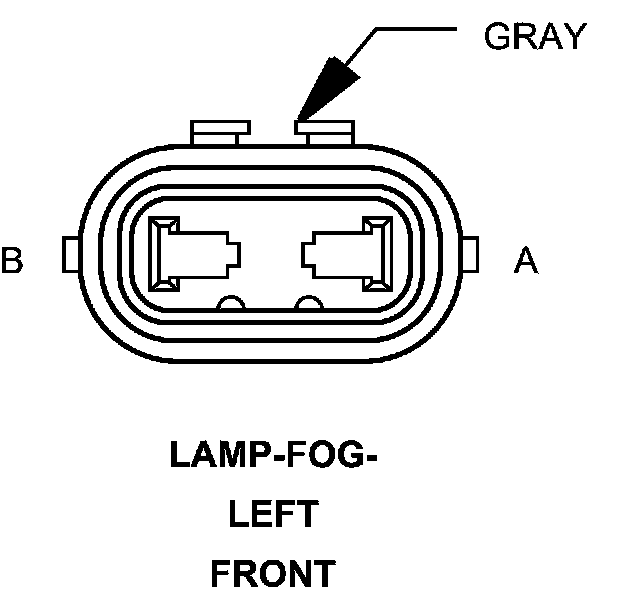

LAMP-FOG-LEFT FRONT - (FRONT END MODULE) 2 WAY
