Powertrain Control Module C1 (Headlamp And Dash) 58 Way

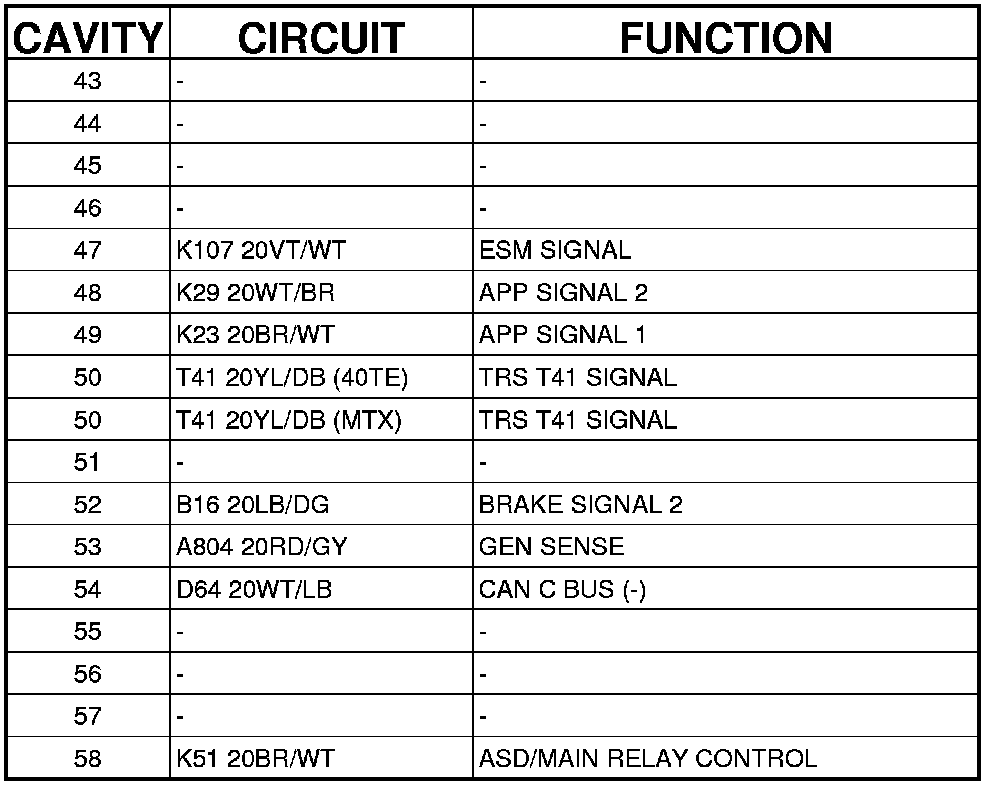

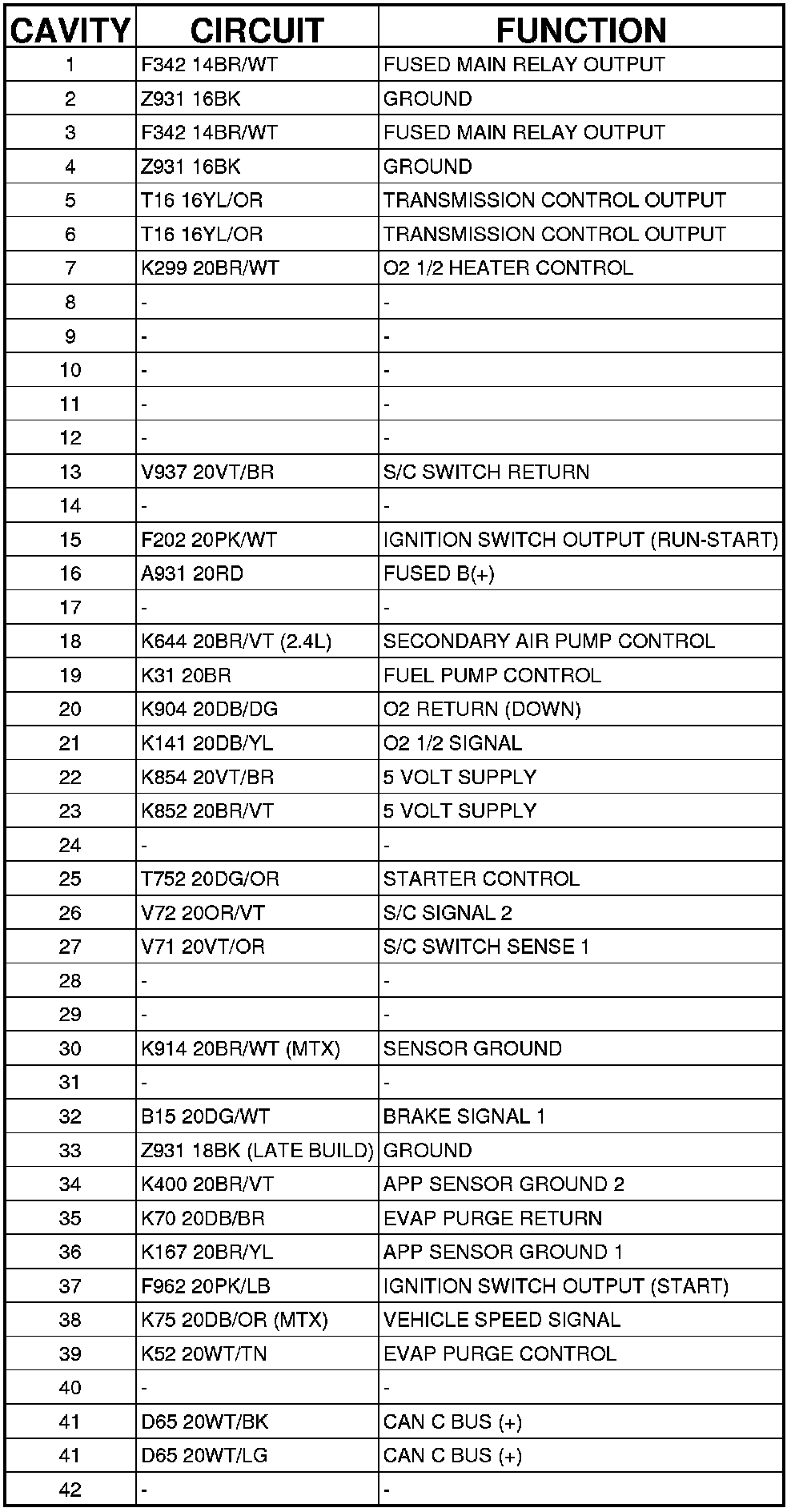

Connector C1 (GPEC) - (HEADLAMP AND DASH) 58 WAY

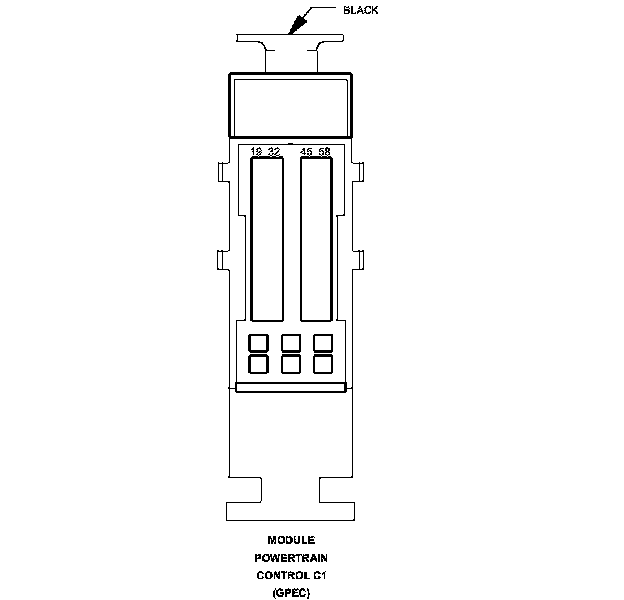

MODULE-POWERTRAIN CONTROL (GPEC) - (HEADLAMP AND DASH) 58 WAY
