Driver Door Module C1 (Driver Door) 10 Way
Driver Door Module C1 (Driver Door) 10 Way

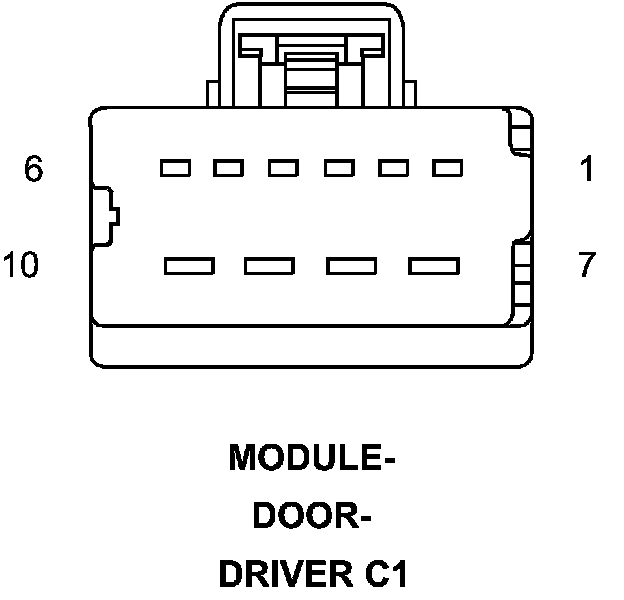

Connector C1 - (DRIVER DOOR) 10 WAY

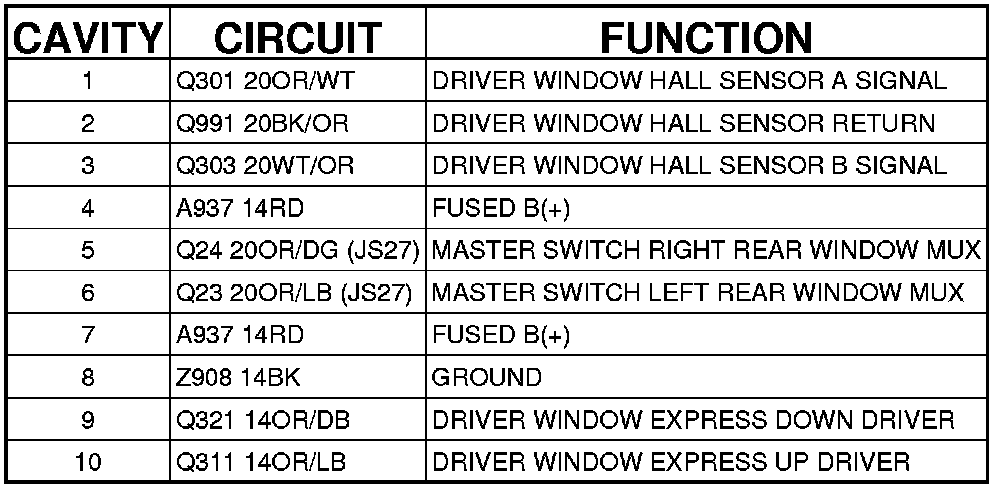

MODULE-DOOR-DRIVER - (DRIVER DOOR) 10 WAY
