Dodge
>>
2009
>>
Avenger L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
A/C-Heater Control (ATC) (Instrument Panel) 16 Way
A/C-Heater Control (ATC) (Instrument Panel) 16 Way

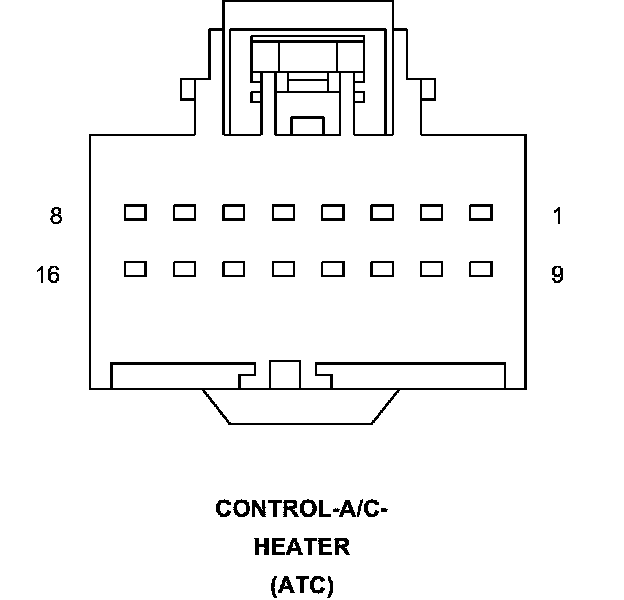

Connector (ATC) - (INSTRUMENT PANEL) 16 WAY

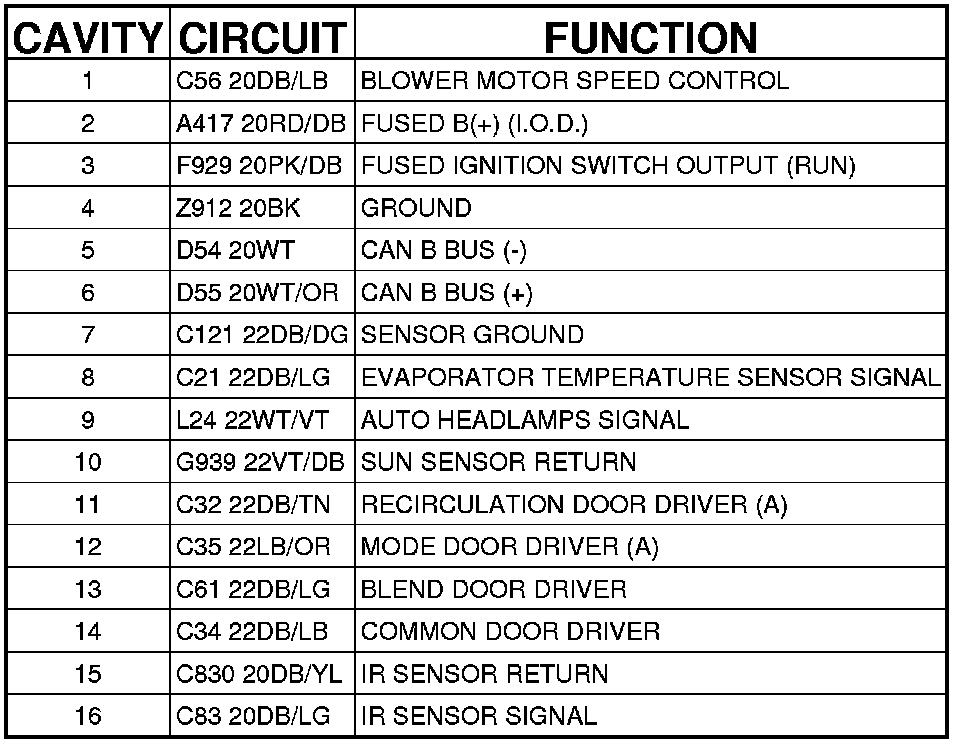

CONTROL-A/C-HEATER (ATC) - (INSTRUMENT PANEL) 16 WAY
