C201 (Except Hands Free) (Instrument Panel Side) 4 Way

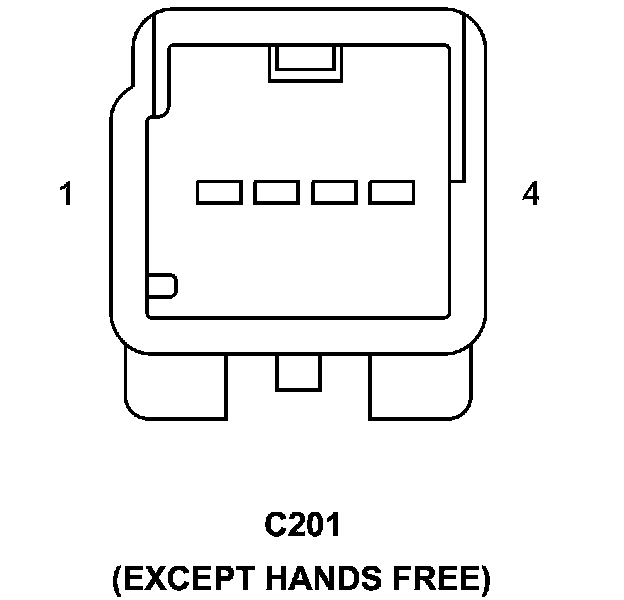

Connector (EXCEPT HANDS FREE) - (INSTRUMENT PANEL SIDE) 4 WAY

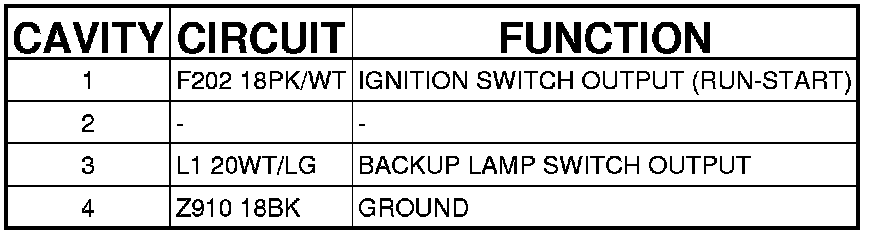

C201 (EXCEPT HANDS FREE) - (INSTRUMENT PANEL SIDE) 4 WAY
