Home >> Dodge >> 2009 >> Avenger L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C111 (Headlamp And Dash Side) 16 Way

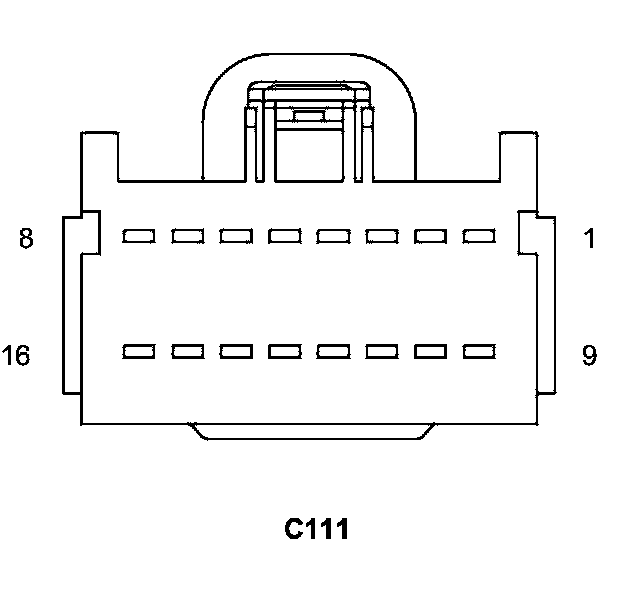

C111 (Headlamp And Dash Side) 16 Way






Connector - (HEADLAMP AND DASH SIDE) 16 WAY

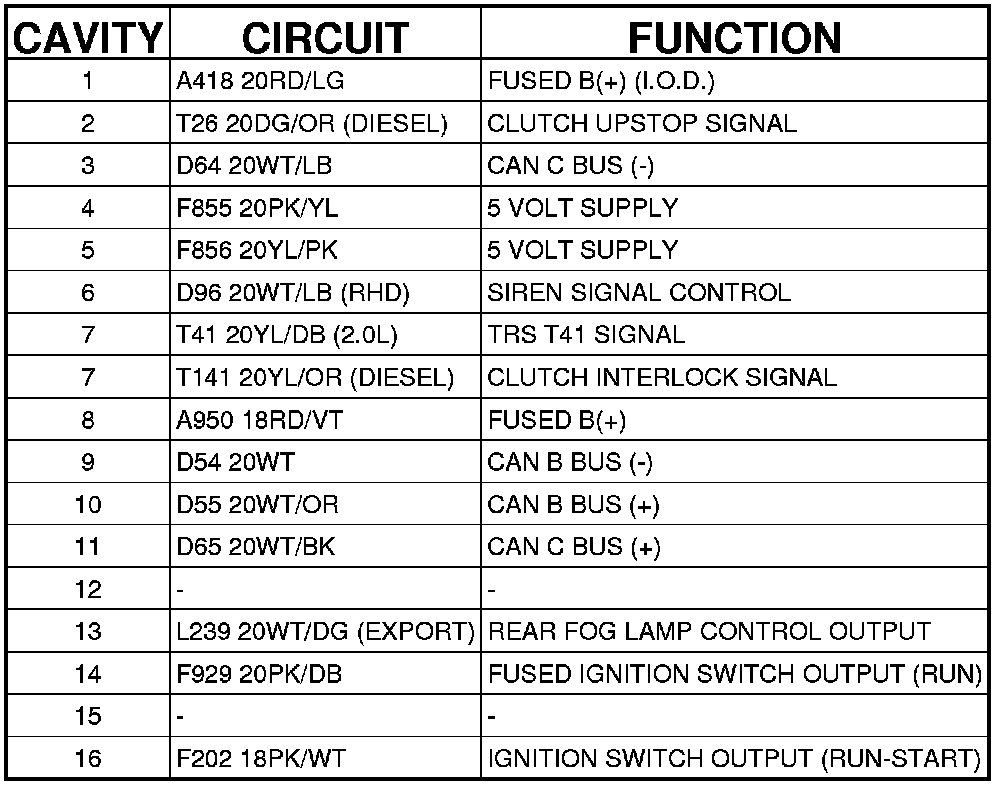

C111 - (HEADLAMP AND DASH SIDE) 16 WAY
