Occupant Restraint Controller Module (Instrument Panel) 24 Way






Connector - (INSTRUMENT PANEL) 24 WAY

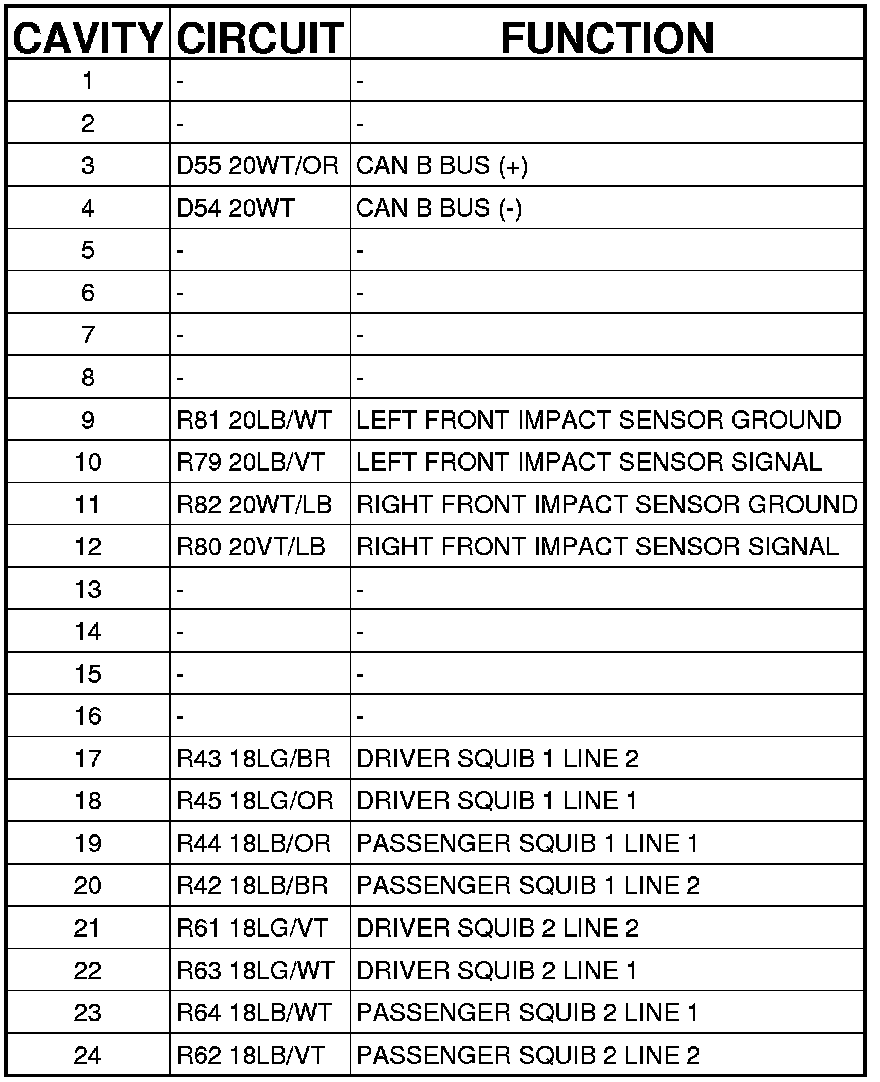

MODULE-OCCUPANT RESTRAINT CONTROLLER - (INSTRUMENT PANEL) 24 WAY
