Passenger Door Latch (JS41 LHD) (Passenger Door) 4 Way

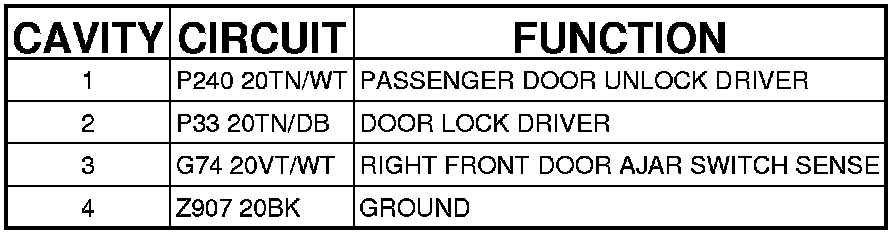

Connector (JS41 LHD) - (PASSENGER DOOR) 4 WAY

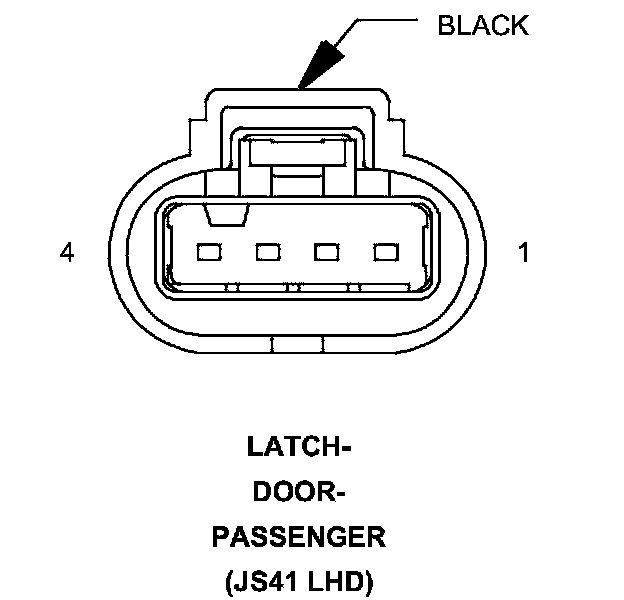

LATCH-DOOR-PASSENGER (JS41 LHD) - (PASSENGER DOOR) 4 WAY
