Variable Induction Control Solenoid: Diagrams

Component ID: 191

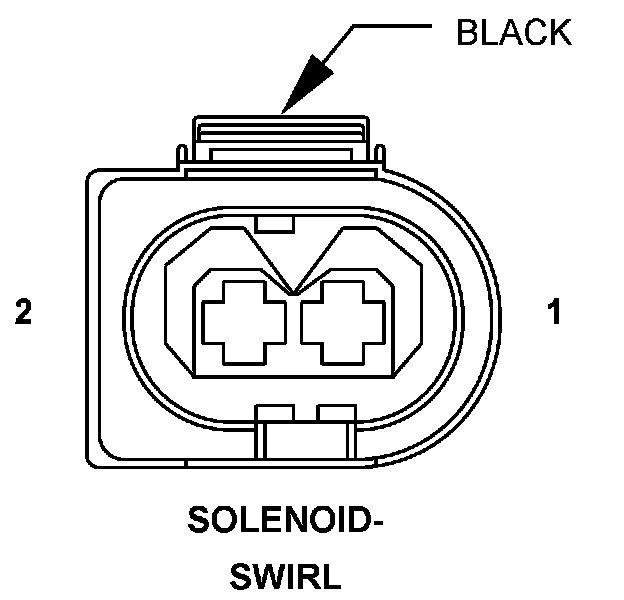

Component : SOLENOID-SWIRL

Connector:
Name : SOLENOID-SWIRL
Color :
# of pins : 2




Pin Circuit Description
1 F344 18DB/LB FUSED ASD RELAY OUTPUT
2 N117 20DB/WT INTAKE SWIRL SERVO MOTOR CONTROL

Component Location - 7
