Charge Air Cooler Hoses

CHARGE AIR COOLER HOSES





HOSE - CHARGE AIR COOLER TO THROTTLE BODY





1. Position hose to mounting location.
2. Connect hose to throttle body.
3. Connect hose to charge air cooler.
4. Tighten hose clamps to 1.7 Nm (15 in. lbs.).

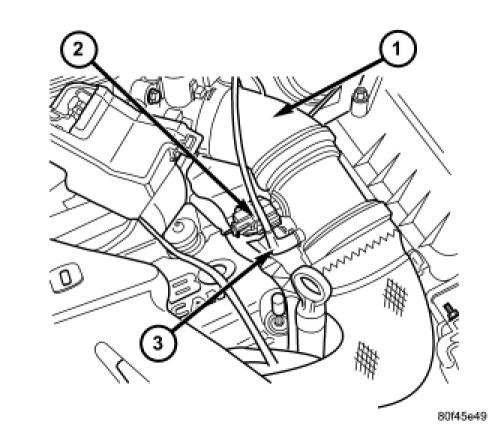

5. Connect Throttle Inlet Pressure (TIP) hose to charge air cooler hose.
6. Connect Inlet Air Temperature (IAT) sensor connector.
7. Install battery tray support bracket.
8. Install battery tray and battery Battery - Installation.
9. Connect positive battery cable.
10. Connect negative battery cable.
11. Install air cleaner housing Air Cleaner Housing - Installation.

HOSE - TURBOCHARGER TO CHARGE AIR COOLER





1. Position hose to mounting location.
2. Temporarily install nuts securing charge air cooler hose to structural collar.
3. Connect hose to turbocharger.
4. Connect hose to charge air cooler.
5. Tighten hose clamps to 1.7 Nm (15 in. lbs.).
6. Tighten nuts securing charge air cooler hose to structural collar.
7. Lower vehicle.
