Sensor-Throttle Inlet Pressure

Component ID: 175

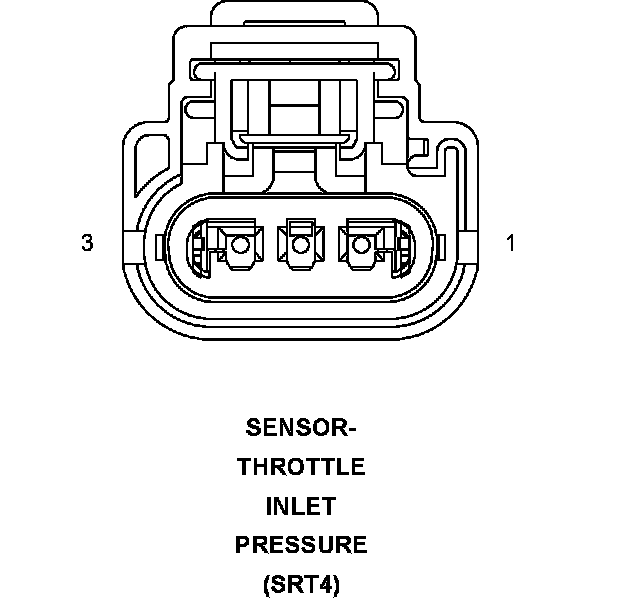

Component : SENSOR-THROTTLE INLET PRESSURE

Connector:
Name : SENSOR-THROTTLE INLET PRESSURE
Color :
# of pins : 3
Qualifier : (SRT4)




Pin Circuit Description
1 K153 20BR/YL TIP SIGNAL
2 K152 20BR/LB TIP RETURN
3 K857 20BR/LG 5 VOLT SUPPLY

Component Location - 7
