Canada - Campaign - H32 Reprogram PCM/OBD Monitors
BulletinH32
Issue Date
2008-11-04
IMPORTANT
DEALER SERVICE INSTRUCTIONS
EMISSIONS RECALL H32 REPROGRAM PCM - OBD MONITORS
Effective immediately, all repairs on involved vehicles are to be performed according to this notification. Rapid Response Transmittal #08-067 has been cancelled. Those vehicles that have already had this repair performed, as determined by our warranty records, have been excluded from this recall.
MODELS:
2008 (PM) Caliber SRT4
NOTE:
This recall applies only to the above vehicles equipped with a 2.4L turbo engine ("F" in the 8th VIN position).
^ The Powertrain Control Module (PCM) on about 800 of the above vehicles may have been inadvertently programmed with software that disabled three engine diagnostic monitors. Without these monitors, an improperly operating component may go undetected and result in excessive exhaust emissions.

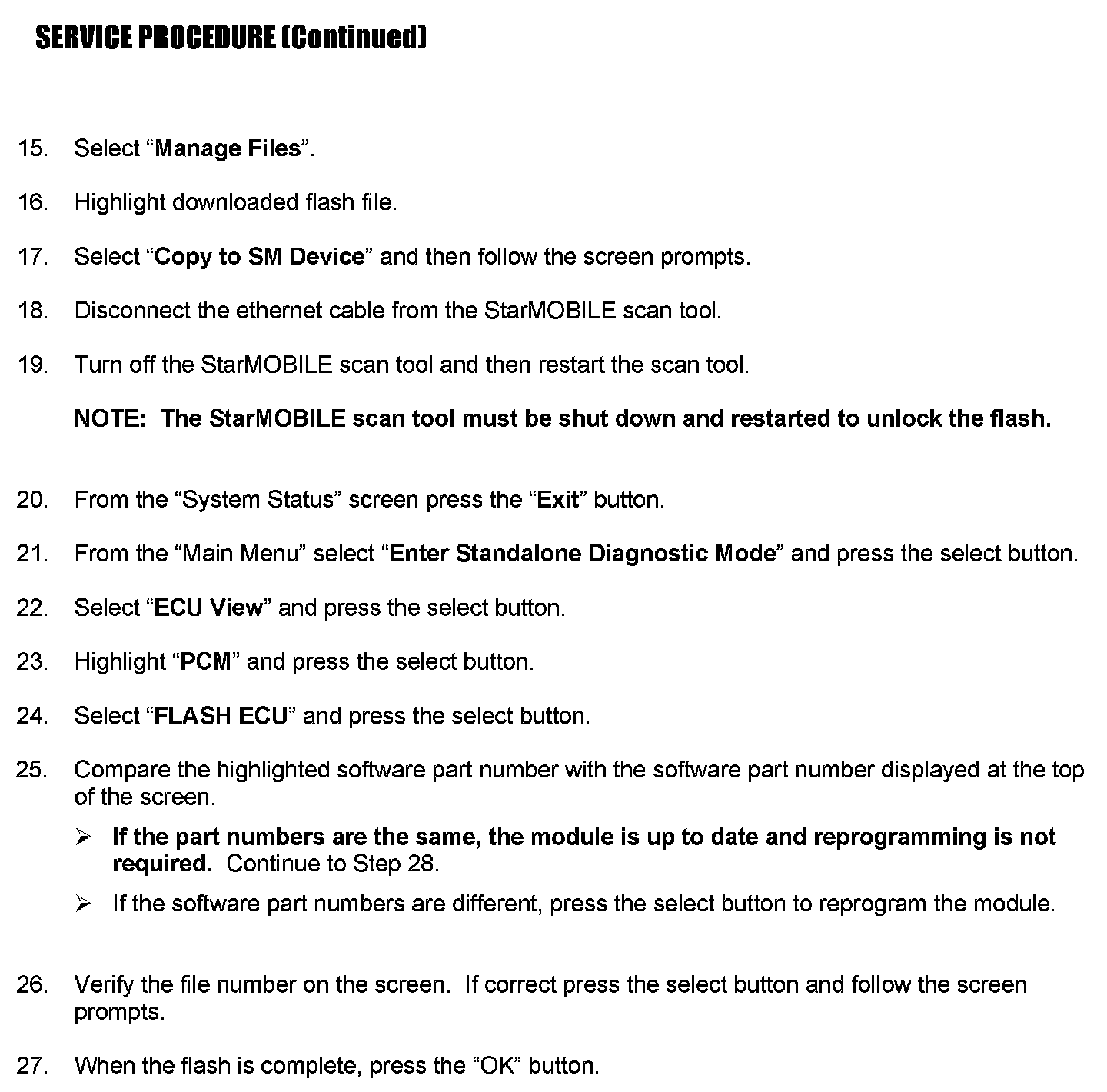

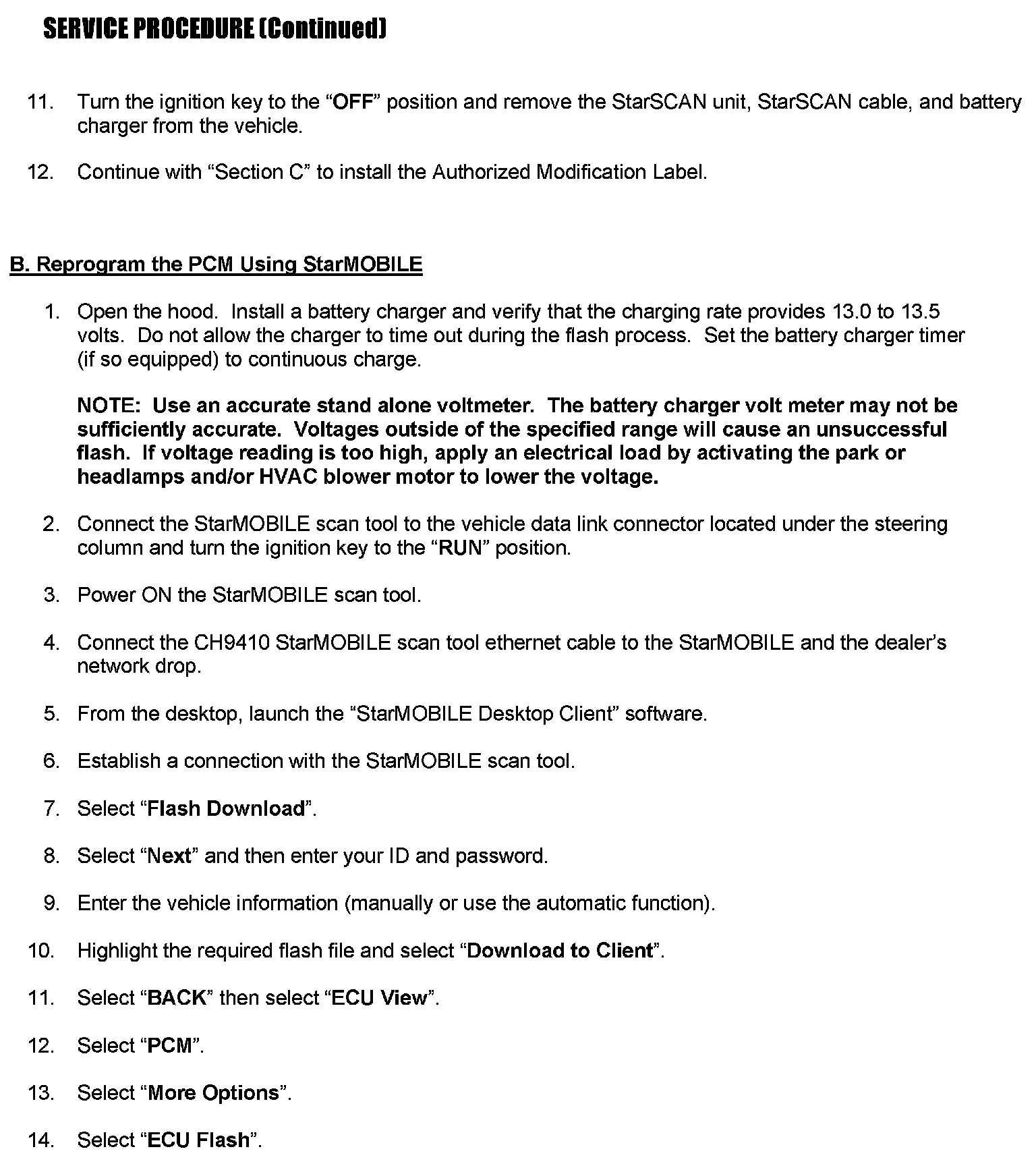

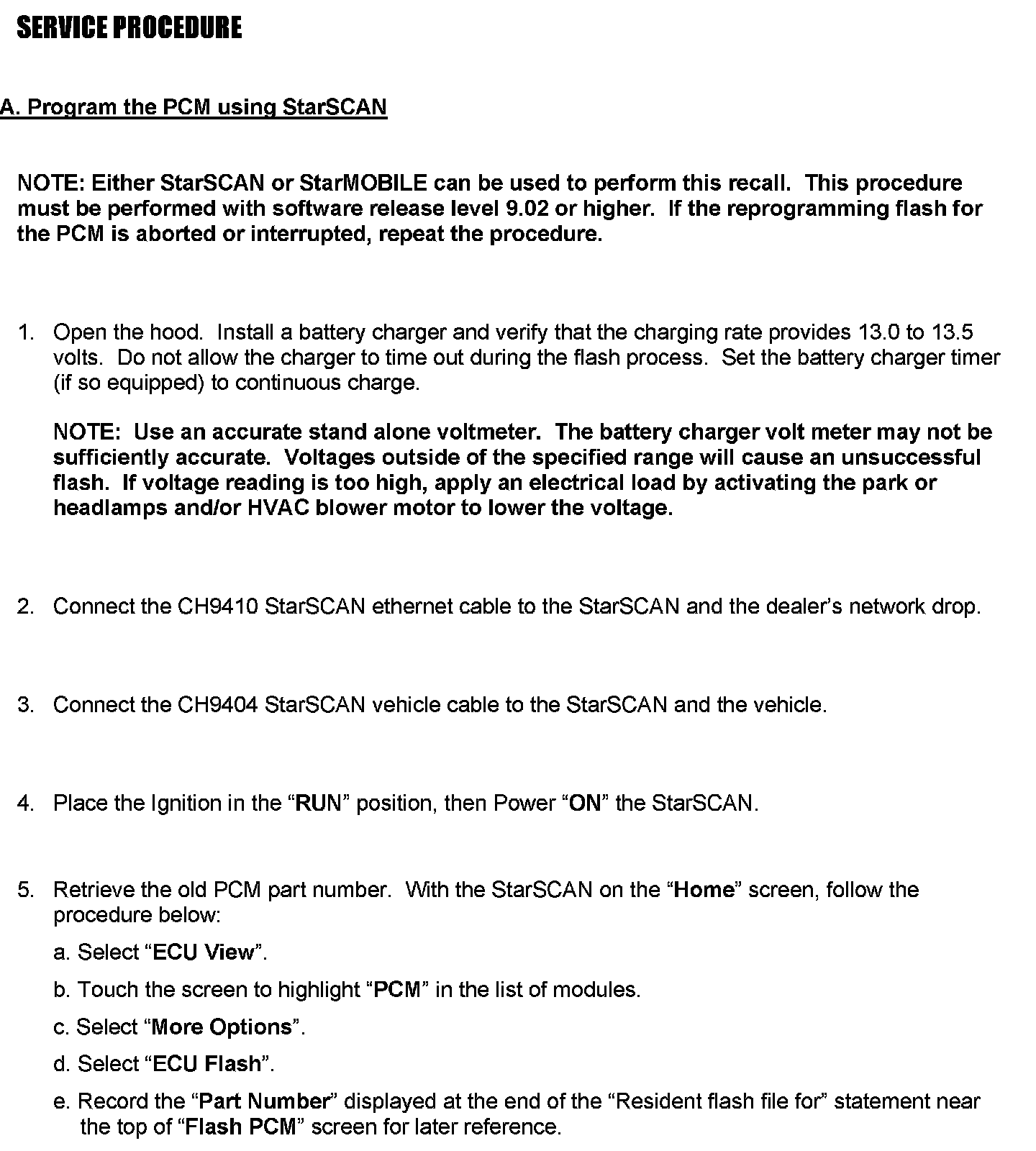

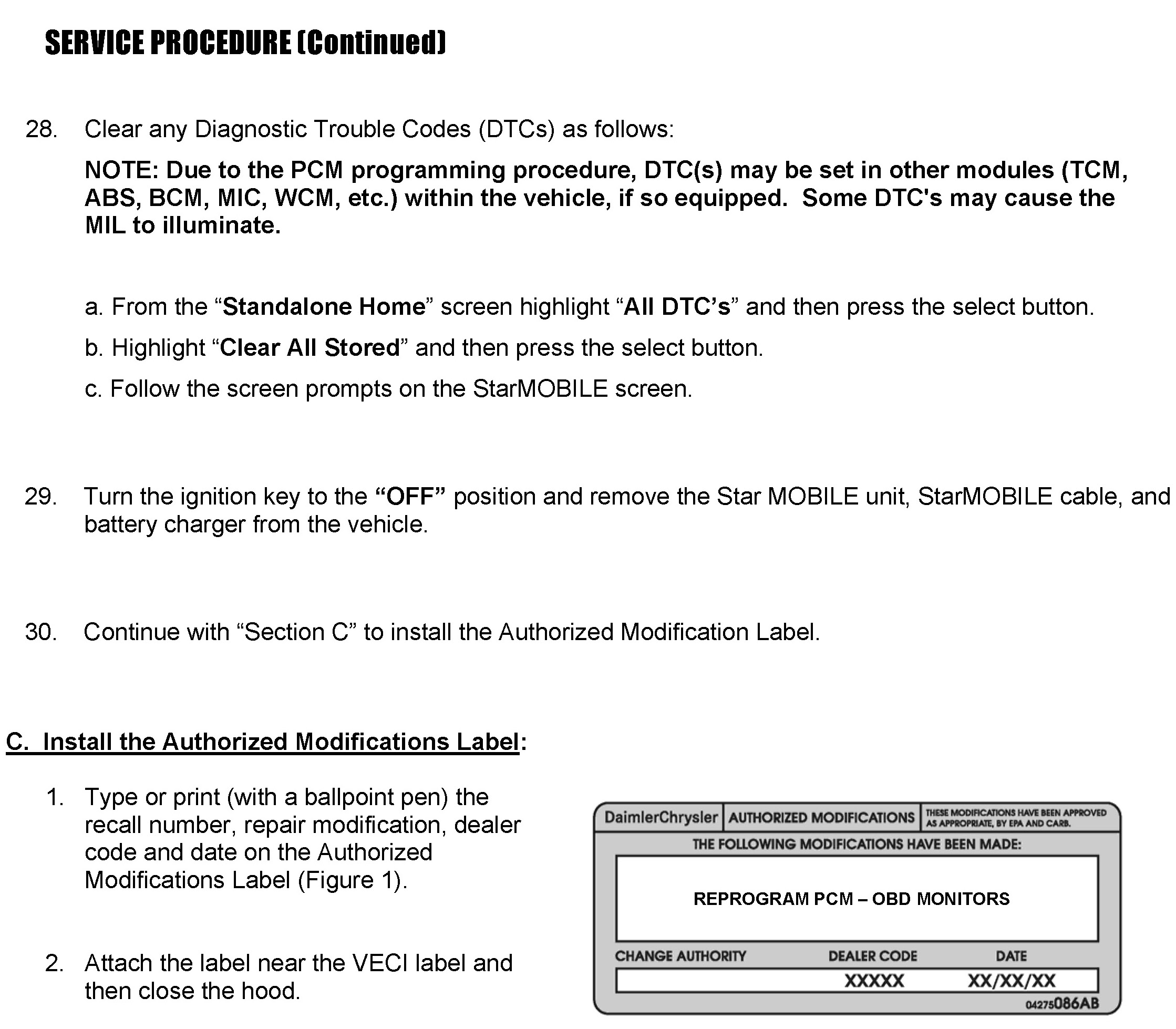

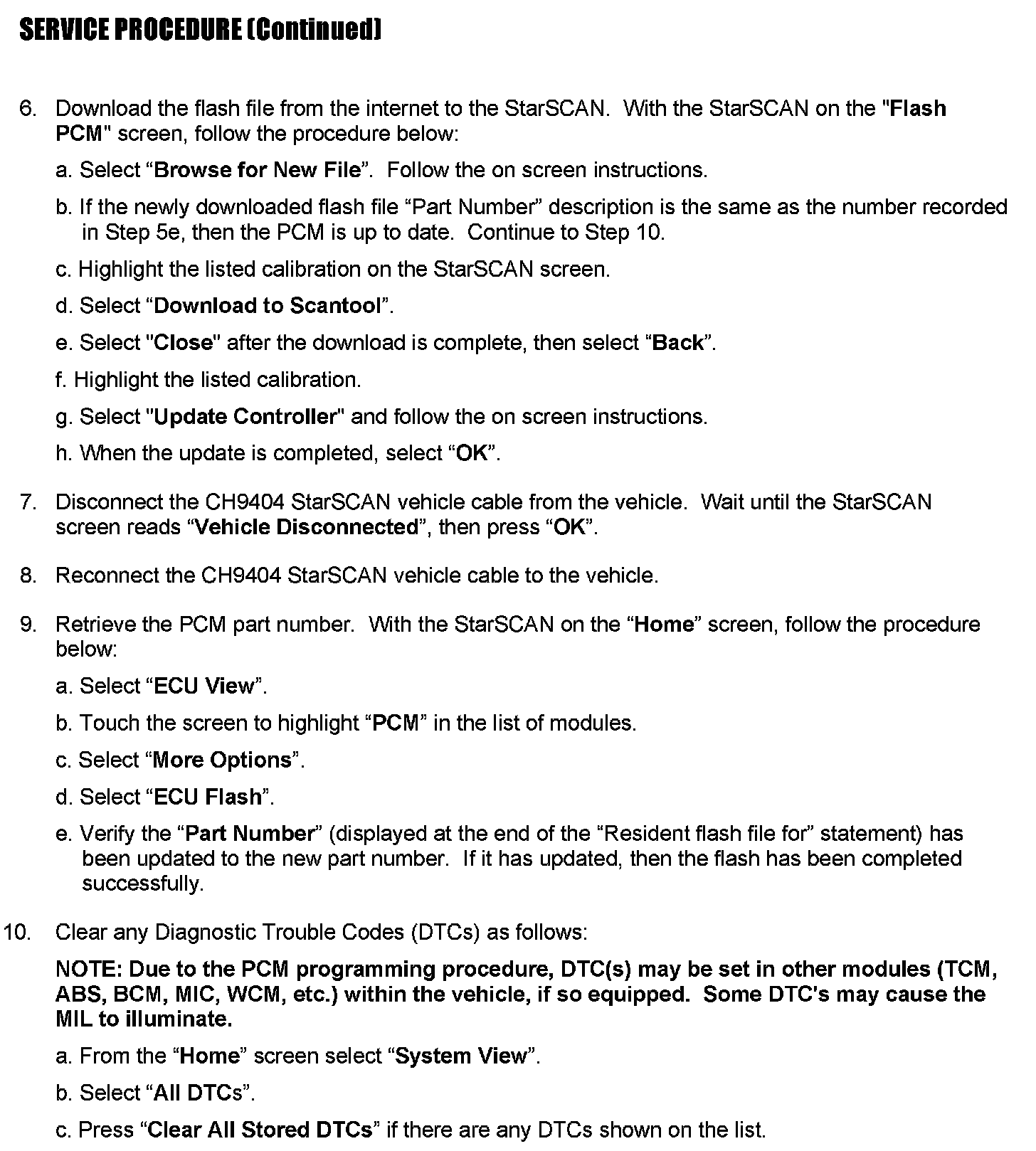

^ To correct this condition, the Powertrain Control Module (PCM) must be reprogrammed (flashed).

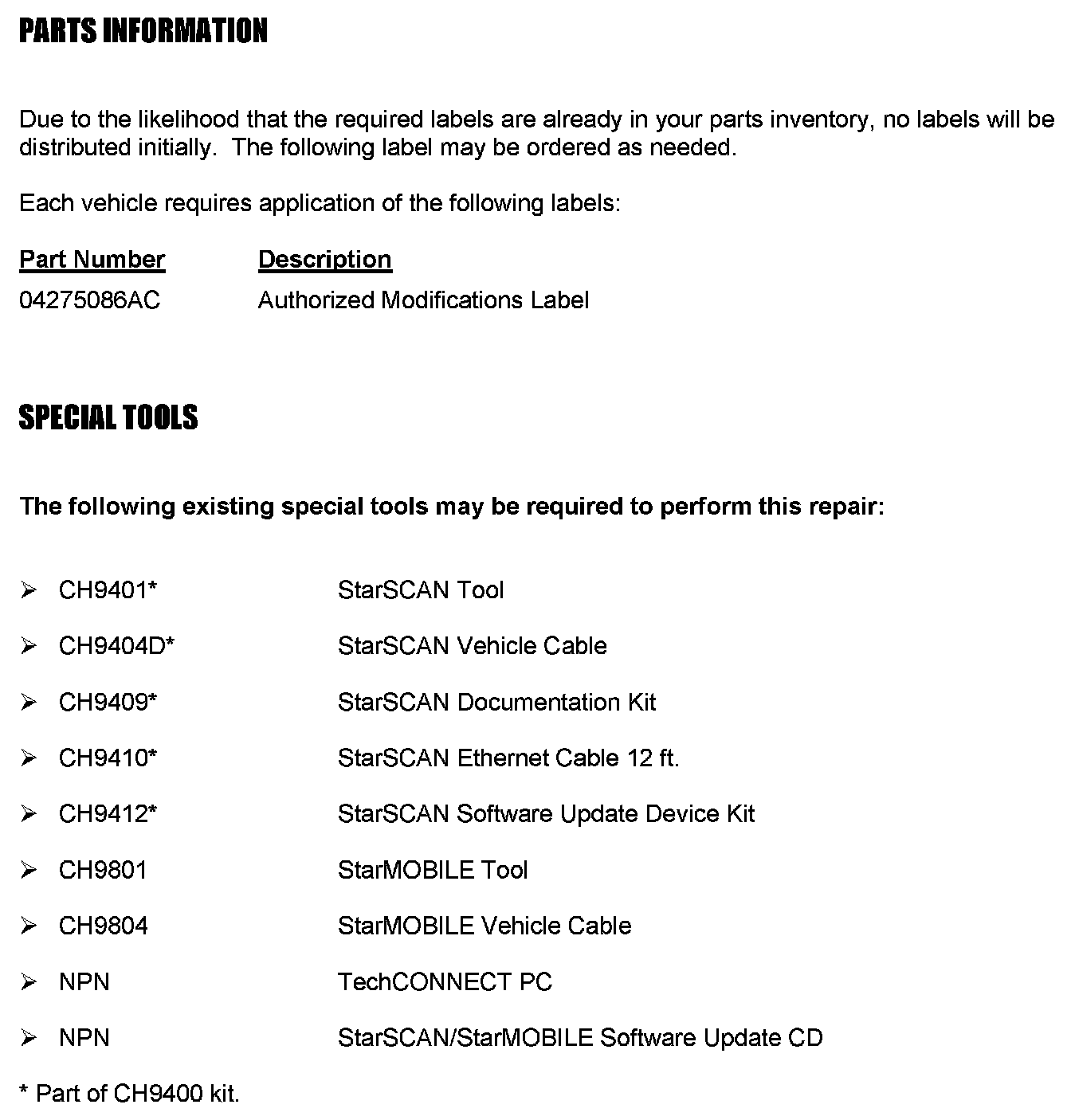

Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.
This Canadian Recall Notification can also be found in DealerCONNECT - See below:
DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS
The V.I.N. range for vehicles involved in this campaign is as follows:
1B3HB68F08D500190 - 1B3HB68F58D800503
DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)
GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.

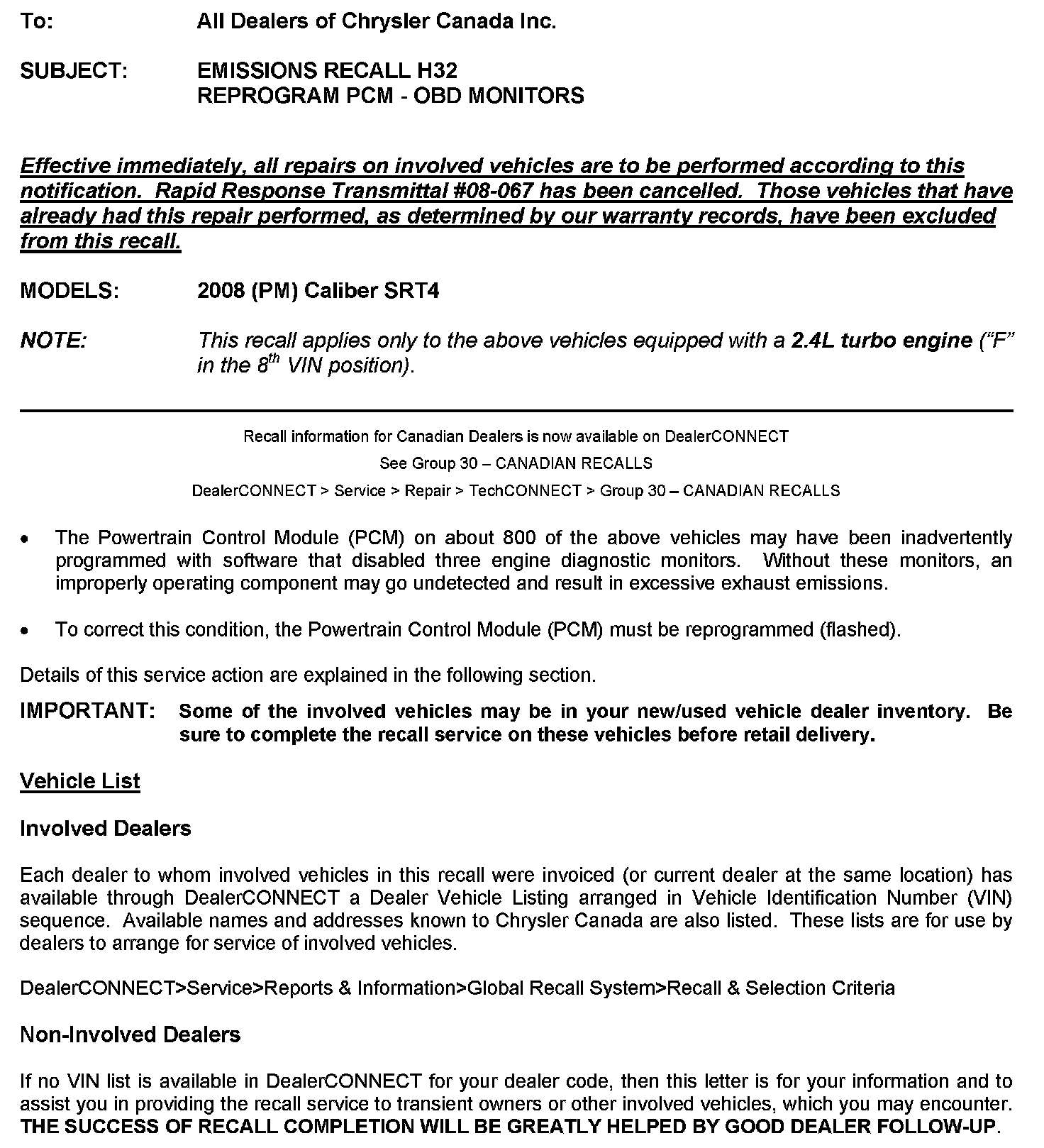

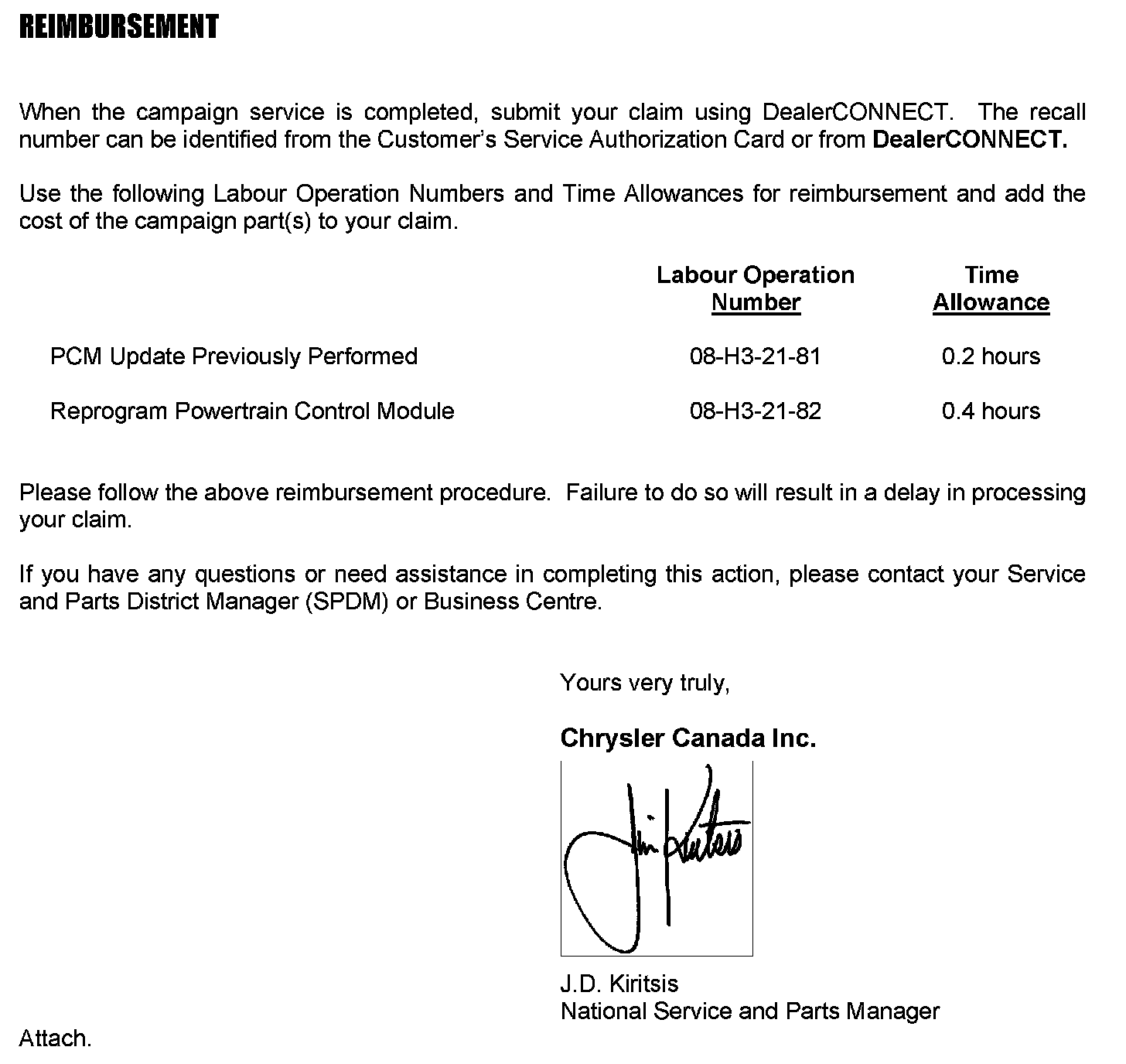

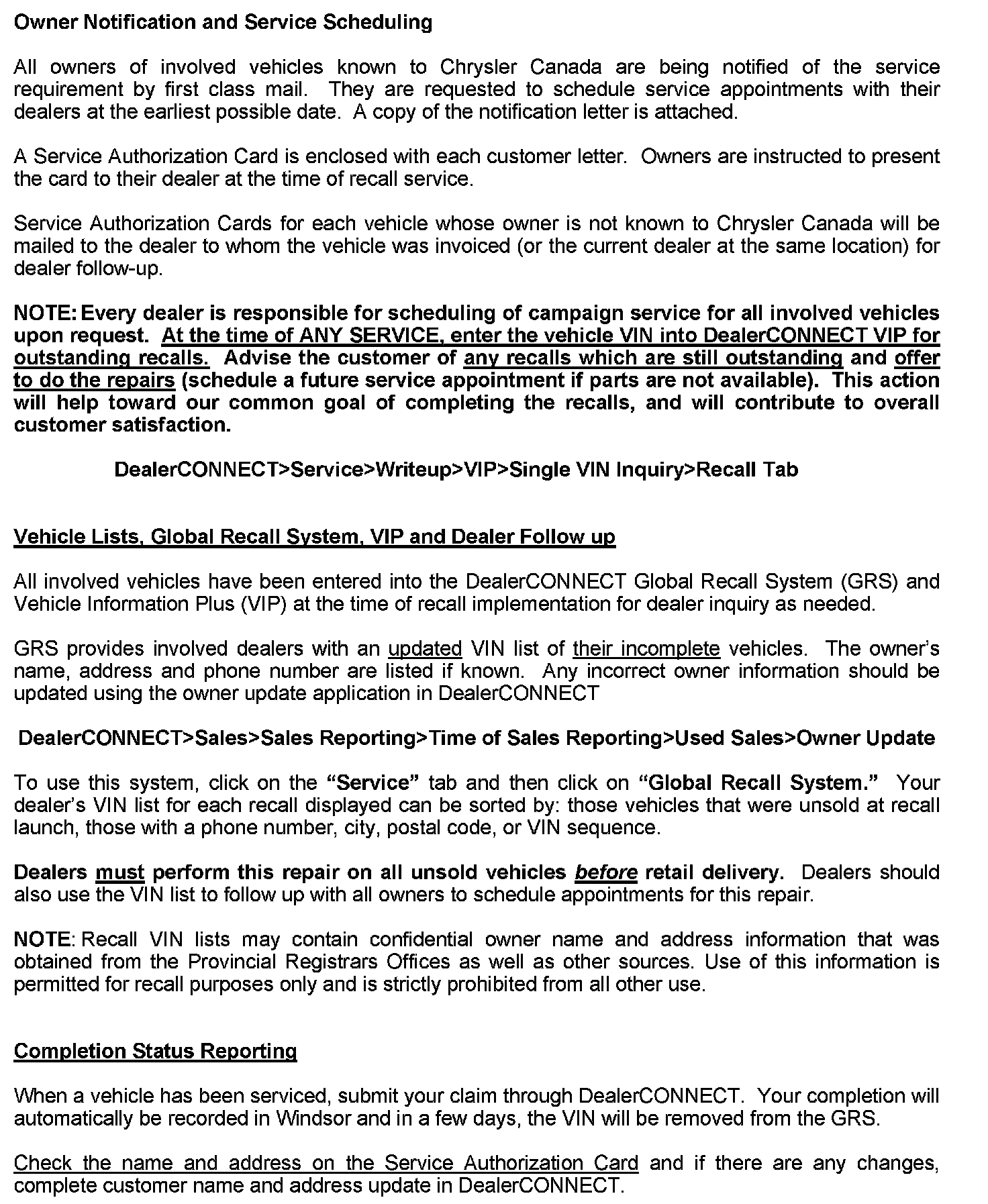

Dealer Information

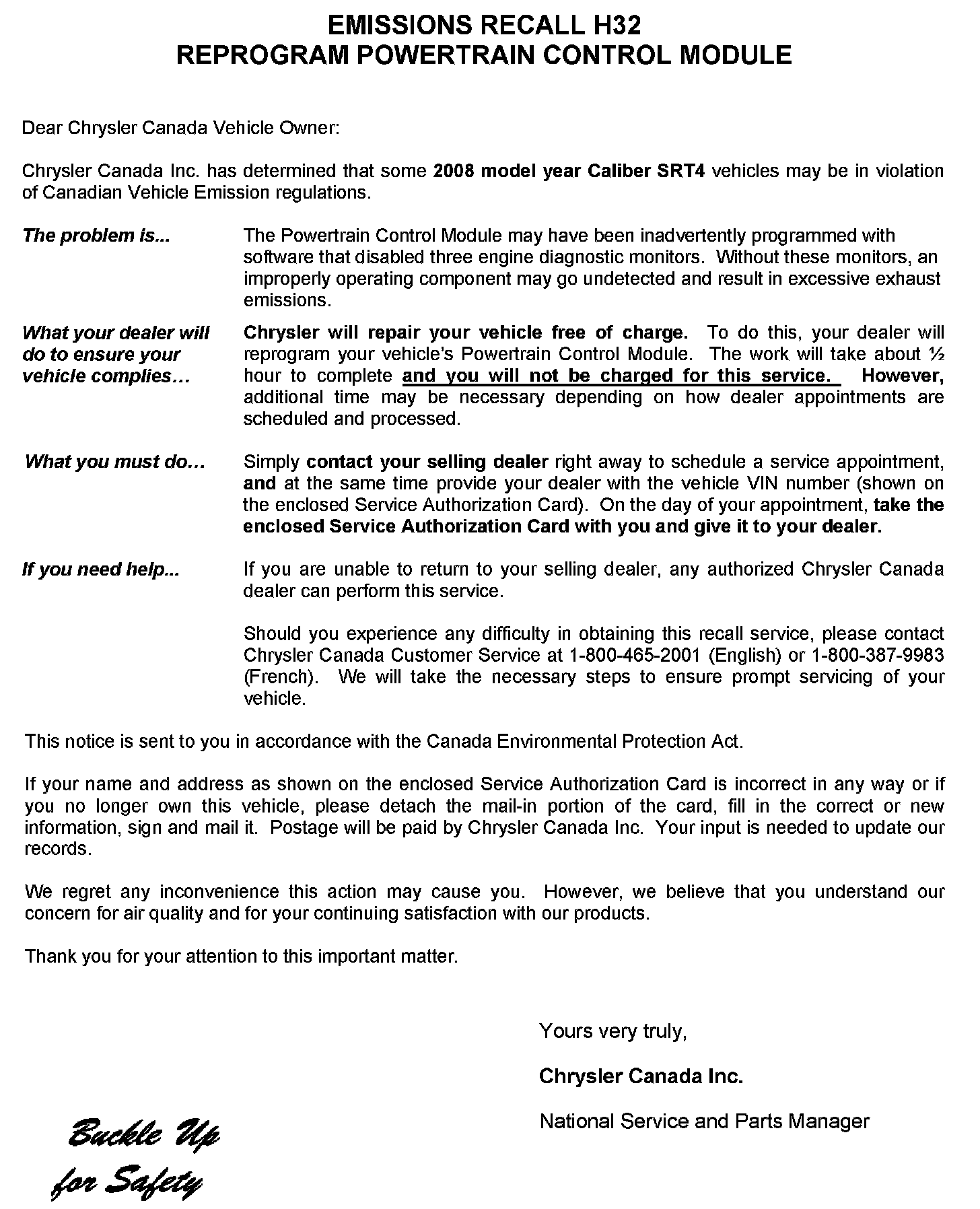

Owner Letter
