Installation

INSTALLATION

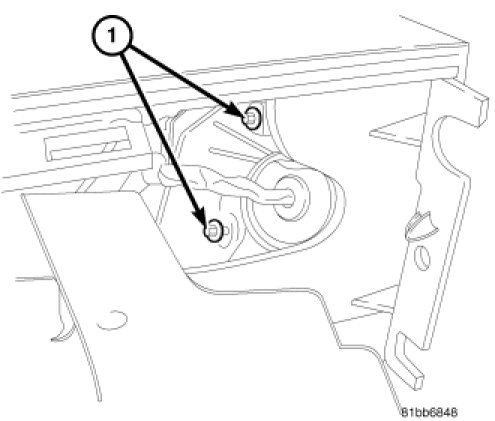

1. Slide the boost gauge into the bezel and upper panel and install the two nuts (1).




2. Connect the one electrical connector (2).




3. Install the screws that were taken out to allow the left side of the upper panel to be lifted up. Installation.
4. Install the instrument panel top cover Instrument Panel Cover - Installation.
5. Install the A-pillar trim, both right and left sides A-Pillar Trim Panel-Installation.
6. Install the instrument panel center bezel Instrument Panel Center Bezel - Installation.
7. Install the steering column opening cover Steering Column Opening Cover - Installation.
8. Install the knee blocker airbag (if equipped) Knee Blocker Airbag - Installation.
9. Install the instrument panel end caps Instrument Panel End Cap - Installation.

WARNING: Do not connect the battery negative cable. Serious or fatal injury may result if the system test is not performed first.
