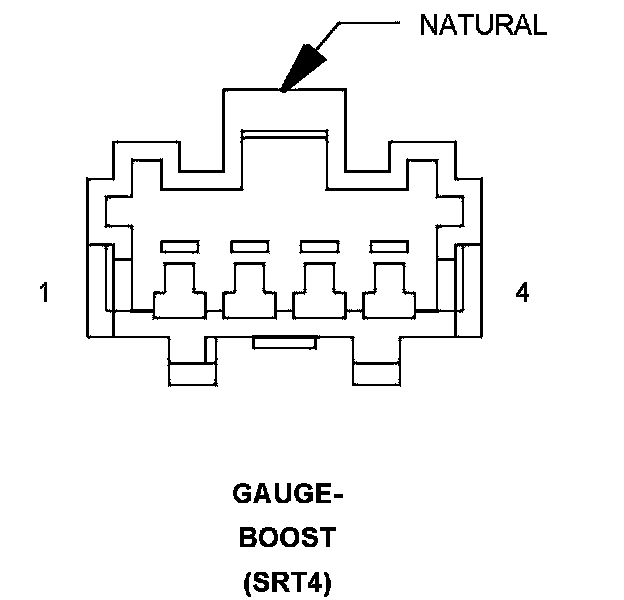

Turbo Boost Gauge

Component ID: 233
Component : GAUGE-BOOST

Connector:
Name : GAUGE-BOOST
Color : NATURAL
# of pins : 4
Qualifier : (SRT4)




Pin Circuit Description
1 Z936 18BK/LB GROUND
2 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC
3 D55 20WT/OR CAN B BUS (+)
4 D54 20WT/PK CAN B BUS (-)
