Installation

INSTALLATION

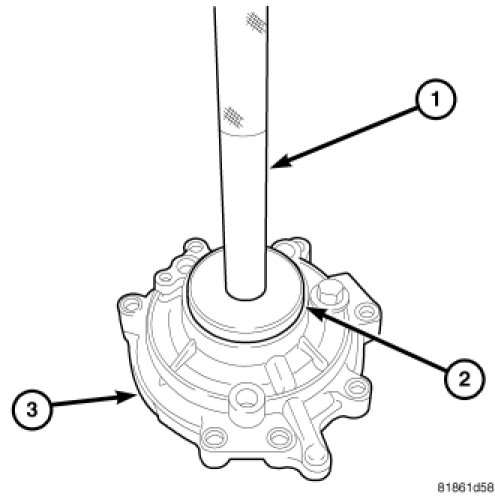

1. Install the inner seal into the PTU cover using Installer 9852 and Handle C-4171.

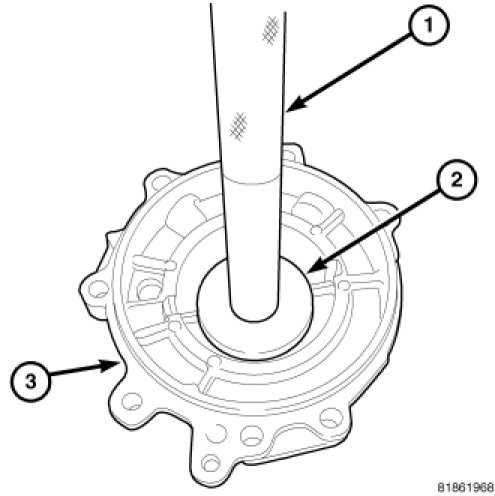

2. Install the outer seal into the PTU cover using Installer 9853 and Handle C-4171.




3. Install the side cover.
4. Tighten side cover bolts (1) to 23 Nm (17 ft. lbs.).
5. Install the right halfshaftHalf Shaft - Installation.
