Seal-Differential Carrier
>>
Installation
Installation
INSTALLATION
1.

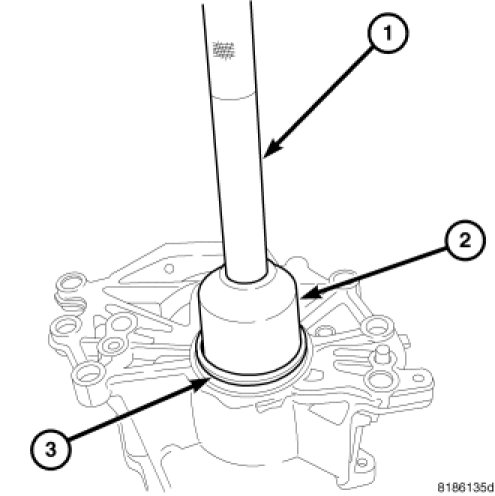

Install the carrier case seal using Installer 9851 and Handle C-4171.
2.
Install the PTU
Installation
.
