Solenoid: Locations

Component ID: 211

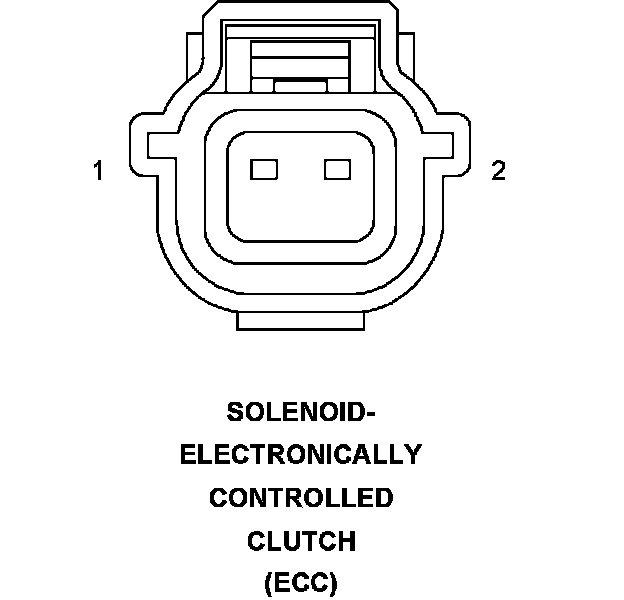

Component : SOLENOID-ELECTRONICALLY CONTROLLED CLUTCH

Connector:
Name : SOLENOID-ELECTRONICALLY CONTROLLED CLUTCH
Color :
# of pins : 2
Qualifier : (ECC)




Pin Circuit Description
1 T312 20YL/VT REAR DIFFERENTIAL SOLENOID CONTROL
2 T78 20YL SOLENOID SUPPLY VOLTAGE

Component Location - 55
