Control Module, Transfer Case

Component ID: 210
Component : MODULE-ALL WHEEL DRIVE CONTROL

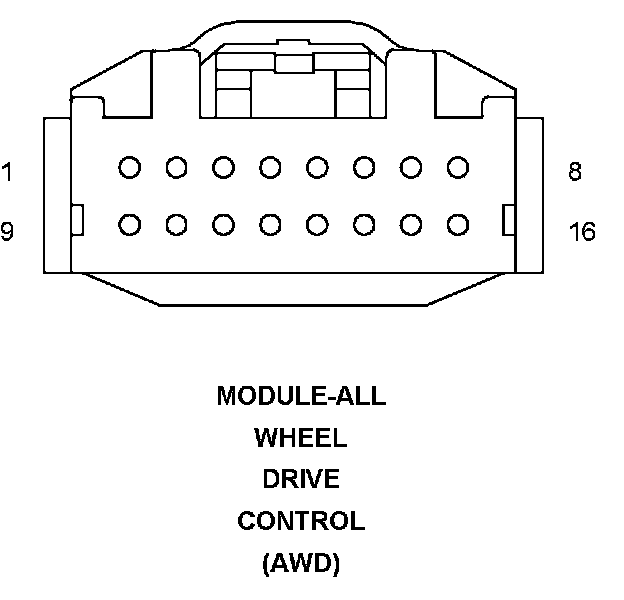

Connector:
Name : MODULE-ALL WHEEL DRIVE CONTROL
Color :
# of pins : 16
Qualifier : (AWD)




Pin Circuit Description
1 - -
2 - -
3 - -
4 D65 20WT/BK CAN C BUS (+)
5 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
6 A923 20RD/WT FUSED B(+)
7 - -
8 T312 20YL/VT REAR DIFFERENTIAL SOLENOID CONTROL
9 - -
10 - -
11 - -
12 D64 20WT/LB CAN C BUS (-)
13 - -
14 - -
15 Z967 20BK GROUND
16 T78 20YL/BK SOLENOID SUPPLY VOLTAGE

Component Location - 40
